892-18-078-10-001101

Active

PRECI-DIP SA

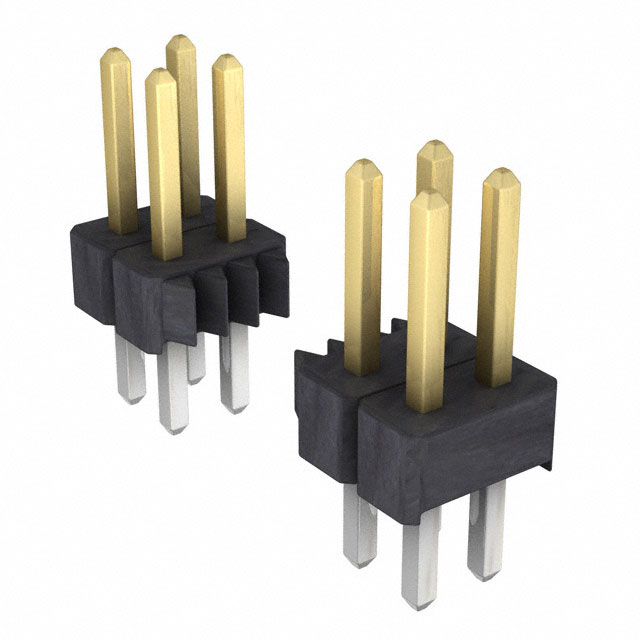

3A STRAIGHT TIN 150V 78P -55℃~+125℃ 2.54MM DOUBLE ROW BLACK BRASS 2.54MM PLUGIN,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-18-078-10-001101

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	78
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	11.64 mm
Overall Contact Length	0.458 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

892-18 Series

...

Part	Number of Rows	Shrouding	Contact Shape	Insulation Color	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Number of Positions	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Material	Termination	Fastening Type	Mounting Type	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Insulation Material	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]
PRECI-DIP SA 892-18-076-10-004101	2	Unshrouded	Square	Black	150 VDC	10 çin	0.25 çm	0.587 in	14.91 mm	Gold	76	0.1 in	2.54 mm	3 A	Brass	Solder	Push-Pull	Through Hole	Tin	0.805 "	20.44 mm	UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.118 in	3 mm	2.54 mm	0.1 in	Header	All	0.1 in	2.54 mm	Male Pin	-55 °C	125 °C
PRECI-DIP SA 892-18-012-20-001101	2	Unshrouded	Square	Black	150 VDC	10 çin	0.25 çm	0.236 in	6 mm	Gold	12	0.1 in	2.54 mm	3 A	Brass	Solder	Push-Pull	Through Hole Right Angle	Tin			UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.118 in	3 mm	2.54 mm	0.1 in	Header	All			Male Pin	-55 °C	125 °C
PRECI-DIP SA 892-18-078-10-001101	2	Unshrouded	Square	Black	150 VDC	10 çin	0.25 çm	0.236 in	6 mm	Gold	78	0.1 in	2.54 mm	3 A	Brass	Solder	Push-Pull	Through Hole	Tin	0.458 "	11.64 mm	UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.122 "	3.1 mm	2.54 mm	0.1 in	Header	All	0.1 in	2.54 mm	Male Pin	-55 °C	125 °C
PRECI-DIP SA 892-18-038-10-002101	2	Unshrouded	Square	Black	150 VDC	10 çin	0.25 çm	0.276 in	7 mm	Gold	38	0.1 in	2.54 mm	3 A	Brass	Solder	Push-Pull	Through Hole	Tin	0.494 in	12.54 mm	UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.118 in	3 mm	2.54 mm	0.1 in	Header	All	0.1 in	2.54 mm	Male Pin	-55 °C	125 °C
PRECI-DIP SA 892-18-032-20-002101	2	Unshrouded	Square	Black	150 VDC	10 çin	0.25 çm	0.276 in	7 mm	Gold		0.1 in	2.54 mm	3 A	Brass	Solder	Push-Pull	Through Hole Right Angle	Tin			UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.118 in	3 mm	2.54 mm	0.1 in	Header	All			Male Pin	-55 °C	125 °C
PRECI-DIP SA 892-18-018-10-002101	2	Unshrouded	Square	Black	150 VDC	10 çin	0.25 çm	0.276 in	7 mm	Gold	18	0.1 in	2.54 mm	3 A	Brass	Solder	Push-Pull	Through Hole	Tin	0.494 in	12.54 mm	UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.118 in	3 mm	2.54 mm	0.1 in	Header	All	0.1 in	2.54 mm	Male Pin	-55 °C	125 °C
PRECI-DIP SA 892-18-064-10-002101	2	Unshrouded	Square	Black	150 VDC	10 çin	0.25 çm	0.276 in	7 mm	Gold	64	0.1 in	2.54 mm	3 A	Brass	Solder	Push-Pull	Through Hole	Tin	0.494 in	12.54 mm	UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.118 in	3 mm	2.54 mm	0.1 in	Header	All	0.1 in	2.54 mm	Male Pin	-55 °C	125 °C
PRECI-DIP SA 892-18-058-10-004101	2	Unshrouded	Square	Black	150 VDC	10 çin	0.25 çm	0.587 in	14.91 mm	Gold	58	0.1 in	2.54 mm	3 A	Brass	Solder	Push-Pull	Through Hole	Tin	0.805 "	20.44 mm	UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.118 in	3 mm	2.54 mm	0.1 in	Header	All	0.1 in	2.54 mm	Male Pin	-55 °C	125 °C
PRECI-DIP SA 892-18-058-20-002101	2	Unshrouded	Square	Black	150 VDC	10 çin	0.25 çm	0.276 in	7 mm	Gold	58	0.1 in	2.54 mm	3 A	Brass	Solder	Push-Pull	Through Hole Right Angle	Tin			UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.118 in	3 mm	2.54 mm	0.1 in	Header	All			Male Pin	-55 °C	125 °C
PRECI-DIP SA 892-18-060-20-001101	2	Unshrouded	Square	Black	150 VDC	10 çin	0.25 çm	0.236 in	6 mm	Gold	60	0.1 in	2.54 mm	3 A	Brass	Solder	Push-Pull	Through Hole Right Angle	Tin			UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.118 in	3 mm	2.54 mm	0.1 in	Header	All			Male Pin	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.26
LCSC	Piece	1	$ 18.46
		200	$ 7.37
		500	$ 7.12
		1000	$ 7.00

Description

General part information

892-18 Series

Connector Header Through Hole 78 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
