095-909-186-018

Active

Amphenol RF

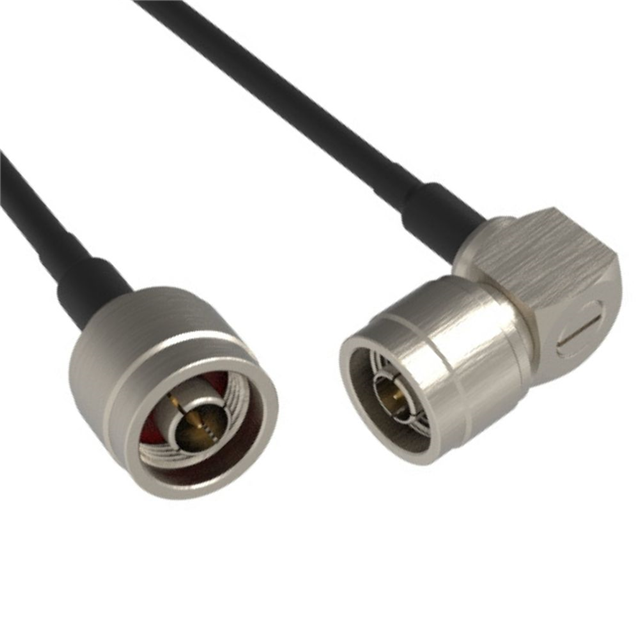

CABLE ASSEMBLY LMR-240 0.457M TYPE N TO TYPE N PL-PL BAG

Deep-Dive with AI

Search across all available documentation for this part.

095-909-186-018

Active

Amphenol RF

CABLE ASSEMBLY LMR-240 0.457M TYPE N TO TYPE N PL-PL BAG

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	095-909-186-018

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	LMR 240
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Overall Impedance	50 Ohms
Style	N-Type to N-Type

095-909 Series

...

Part	Frequency - Max [Max]	2nd Contact Gender	1st Connector Mounting Type	Color	Length	Length	Cable Impedance	Overall Impedance	Features	1st Connector Mounting Feature	Cable Type	2nd Connector	Style	1st Connector	2nd Connector Mounting Type	Ingress Protection	1st Contact Gender	Length	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 095-909-175-024	6000 MHz	Male	Panel Mount	Black	24 "	609.6 mm	50 Ohms	50 Ohms	Shielded	Bulkhead - Front Side Nut	LMR 400	N-Type Plug Right Angle	N-Type to N-Type	N-Type Jack	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Female
Amphenol RF 095-909-175L075	6000 MHz	Male	Panel Mount	Black	22.86 m 900 (22.9m)		50 Ohms	50 Ohms	Shielded	Bulkhead - Front Side Nut	LMR 400	N-Type Plug Right Angle	N-Type to N-Type	N-Type Jack	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Female
Amphenol RF 095-909-174-240	6000 MHz	Male	Panel Mount	Black	20 ft	6.1 m	50 Ohms	50 Ohms	Shielded	Bulkhead - Front Side Nut	LMR 400	N-Type Plug	N-Type to N-Type	N-Type Jack	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Female	20 ft
Amphenol RF 095-909-174-012	6000 MHz	Male	Panel Mount	Black	12 "	304.8 mm	50 Ohms	50 Ohms	Shielded	Bulkhead - Front Side Nut	LMR 400	N-Type Plug	N-Type to N-Type	N-Type Jack	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Female
Amphenol RF 095-909-175L050	6000 MHz	Male	Panel Mount	Black	50 ft	15.2 m	50 Ohms	50 Ohms	Shielded	Bulkhead - Front Side Nut	LMR 400	N-Type Plug Right Angle	N-Type to N-Type	N-Type Jack	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Female	50 ft
Amphenol RF 095-909-186-018	6000 MHz	Male	Free Hanging (In-Line)	Black			50 Ohms	50 Ohms	Shielded		LMR 240	N-Type Plug Right Angle	N-Type to N-Type		Free Hanging (In-Line)		Male		457.2 mm	457.2 mm	-65 ░C	165 °C
Amphenol RF 095-909-174-036	6000 MHz	Male	Panel Mount	Black	36 in	91.44 cm	50 Ohms	50 Ohms	Shielded	Bulkhead - Front Side Nut	LMR 400	N-Type Plug	N-Type to N-Type	N-Type Jack	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Female
Amphenol RF 095-909-174-108	6000 MHz	Male	Panel Mount	Black	108 in	2.7 m	50 Ohms	50 Ohms	Shielded	Bulkhead - Front Side Nut	LMR 400	N-Type Plug	N-Type to N-Type	N-Type Jack	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Female	9 ft
Amphenol RF 095-909-174-048	6000 MHz	Male	Panel Mount	Black	48 in	1200 mm	50 Ohms	50 Ohms	Shielded	Bulkhead - Front Side Nut	LMR 400	N-Type Plug	N-Type to N-Type	N-Type Jack	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Female	4 ft
Amphenol RF 095-909-190-048	6000 MHz	Male	Free Hanging (In-Line)	Black	48 in	1200 mm	50 Ohms	50 Ohms	Shielded		LMR 400	N-Type Plug Right Angle	RP-TNC to N-Type	RP-TNC Plug	Free Hanging (In-Line)		Female	4 ft			-65 ░C	165 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 47.43

Description

General part information

095-909 Series

Cable Assembly Coaxial N-Type to N-Type LMR 240 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
