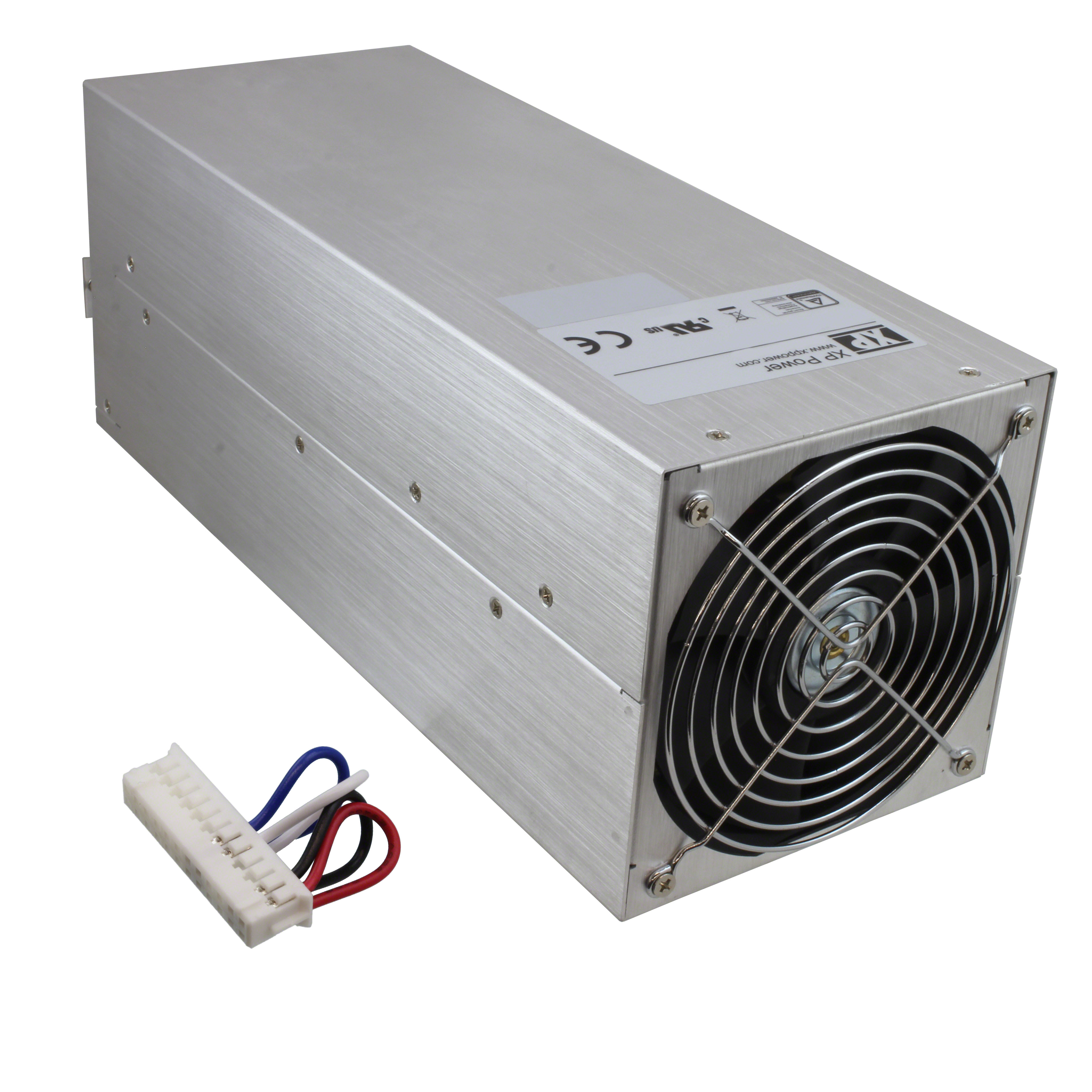

HDS3000PS30

Active

XP POWER

AC/DC CONVERTER 30V 3000W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 30V 3000W

Technical Specifications

Parameters and characteristics for this part

Specification	HDS3000PS30

Applications	ITE (Commercial)
Approval Agency	UL, TUV, CB
Current - Output 1	100 A
Efficiency	91 %
Features	Load Sharing, Remote Sense, Remote On/Off, Universal Input, I2C Interface, Adjustable Output, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	3000 W
Size / Dimension [x]	14.41 in
Size / Dimension [x]	366 mm
Size / Dimension [y]	5 "
Size / Dimension [y]	127 mm
Size / Dimension [z]	5 in
Size / Dimension [z]	127 mm
Standard Number	62368-1
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	30 V

Part	Standard Number	Voltage - Isolation	Voltage - Output 1	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Features	Current - Output 1	Power (Watts)	Approval Agency	Number of Outputs	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Efficiency
XP POWER HDS3000PS60	62368-1	3000 V	60 V	ITE (Commercial)	90 VAC	264 VAC	Adjustable Output I2C Interface Load Sharing Remote On/Off Remote Sense Standby Output Universal Input	50 A	3000 W	CB TUV UL	1	Enclosed	60 °C	-20 °C	Chassis Mount	14.41 in	5 in	127 mm	5 "	366 mm	127 mm	93 %
XP POWER HDS3000PS36	62368-1	3000 V	36 V	ITE (Commercial)	90 VAC	264 VAC	Adjustable Output I2C Interface Load Sharing Remote On/Off Remote Sense Standby Output Universal Input	83.5 A	3000 W	CB TUV UL	1	Enclosed	60 °C	-20 °C	Chassis Mount	14.41 in	5 in	127 mm	5 "	366 mm	127 mm	92 %
XP POWER HDS3000PS30	62368-1	3000 V	30 V	ITE (Commercial)	90 VAC	264 VAC	Adjustable Output I2C Interface Load Sharing Remote On/Off Remote Sense Standby Output Universal Input	100 A	3000 W	CB TUV UL	1	Enclosed	60 °C	-20 °C	Chassis Mount	14.41 in	5 in	127 mm	5 "	366 mm	127 mm	91 %
