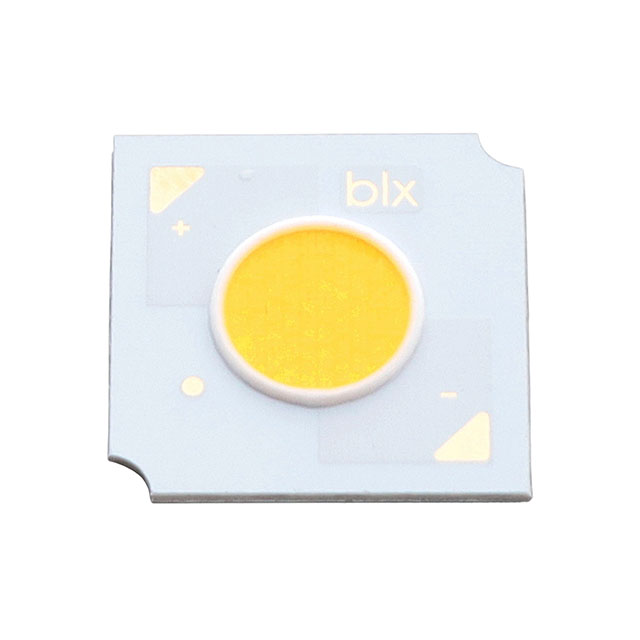

BXRH-40E3000-D-83

Active

BRIDGELUX

LED COB V9 HD NEUT WHT SQU 4000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRH-40E3000-D-83

Active

BRIDGELUX

LED COB V9 HD NEUT WHT SQU 4000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRH-40E3000-D-83

CCT (K)	4000 K
Color	Neutral, White
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	1.2 A
Height [z]	1.63 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	8.8 mm
Lumens/Watt @ Current - Test	146 lm/W
Luminous Flux @ Current/Temperature	3737 lm
Size / Dimension [x]	19 mm
Size / Dimension [y]	19 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	36.6 V

BXRH-40 Series

Part	Type	Current - Max [Max]	Height [z]	Lens Type	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Size / Dimension [x]	Size / Dimension [y]	Light Emitting Surface (LES) [diameter]	Configuration	Color	Lumens/Watt @ Current - Test	CCT (K)	Viewing Angle	Luminous Flux @ Current/Temperature	Current - Test	Temperature - Test
BRIDGELUX BXRH-40G0300-B-83	Chip On Board (COB)	360 mA	1.63 mm	Flat	17.6 V	90	12.5 mm	12.5 mm	3.8 mm	Square	Neutral White	121 lm/W	4000 K	120 °	340 lm
BRIDGELUX BXRH-40E1000-G-83	Chip On Board (COB)	1.2 A	1.63 mm	Flat	18.3 V	80			6.6 mm	Square	Neutral White	144 lm/W	4000 K	120 °	1850 lm
BRIDGELUX BXRH-40E6000-G-23	Chip On Board (COB)	2.2 A	1.7 mm	Flat	36.6 V	80	17.85 mm	17.85 mm	12.6 mm	Square	Neutral White	106 lm/W	4000 K	112 °	6789 lm	1.75 A
BRIDGELUX BXRH-40E3000-D-83	Chip On Board (COB)	1.2 A	1.63 mm	Flat	36.6 V	80	19 mm	19 mm	8.8 mm	Square	Neutral White	146 lm/W	4000 K	120 °	3737 lm
BRIDGELUX BXRH-40H0300-B-83	Chip On Board (COB)	360 mA	1.63 mm	Flat	17.6 V	97	12.5 mm	12.5 mm	3.8 mm	Square	Neutral White	109 lm/W	4000 K	120 °	307 lm
BRIDGELUX BXRH-40S0601-A-73	Chip On Board (COB)	240 mA	1.63 mm	Flat	36.4 V	98	12.5 mm	12.5 mm	4.5 mm	Square	Neutral White	102 lm/W	4000 K	120 °	650 lm	175 mA
BRIDGELUX BXRH-40H1000-G-83	Chip On Board (COB)	1.2 A	1.63 mm	Flat	18.3 V	97			6.6 mm	Square	Neutral White	109 lm/W	4000 K	120 °	1395 lm
BRIDGELUX BXRH-40G0600-A-73	Chip On Board (COB)	240 mA	1.63 mm	Flat	35.4 V	90	12.5 mm	12.5 mm	5.2 mm	Square	Neutral White	96 lm/W	4000 K	120 °	592 lm	175 mA	85 °C
BRIDGELUX BXRH-40G3000-D-23	Chip On Board (COB)	1.4 A	1.7 mm	Flat	36.6 V	90			9.5 mm	Square	Neutral White	88 lm/W	4000 K	112 °	3221 lm	1 A
BRIDGELUX BXRH-40G1000-B-73	Chip On Board (COB)	480 mA	1.63 mm	Flat	35.4 V	90			7 mm	Square	Neutral White	99 lm/W	4000 K	120 °	1229 lm	350 mA	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.82
		10	$ 4.12
		100	$ 3.37
		500	$ 2.84
		1000	$ 2.61
		2000	$ 2.50

Description

General part information

BXRH-40 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 8 V9 HD LED Array White, Neutral Square
