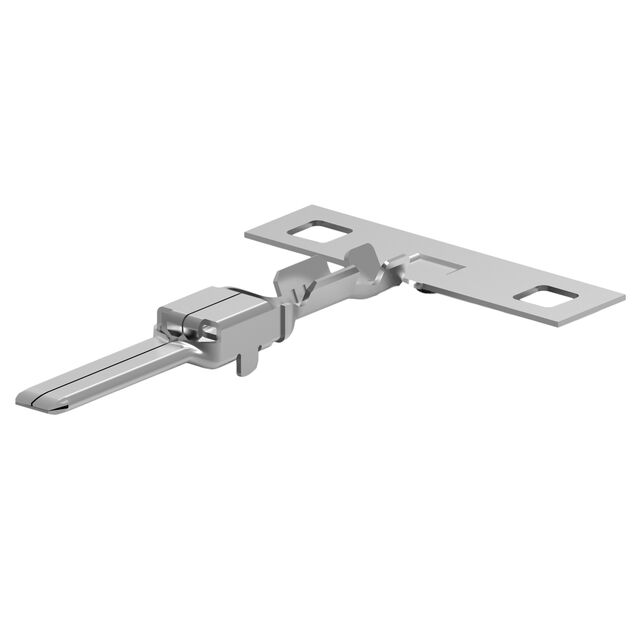

1326029-3
ActiveTE Connectivity Raychem Cable Protection
2.8MM BLADE, UNSEAL,14-16AWG
Deep-Dive with AI
Search across all available documentation for this part.
1326029-3
ActiveTE Connectivity Raychem Cable Protection
2.8MM BLADE, UNSEAL,14-16AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1326029-3 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 31.5 µin |
| Contact Finish Thickness | 0.8 µm |
| Contact Termination | Crimp |
| Pin or Socket | Blade |
| Type | Power |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.38 | |
| 10 | $ 0.32 | |||
| 25 | $ 0.28 | |||
| 50 | $ 0.26 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.18 | |||
| 2500 | $ 0.16 | |||
Description
General part information
1.5/2.8 Connector System Series
Tab Terminal, 16 – 14 AWG, 1.29 – 2.09 mm² Wire, 2.8 mm [.11 in] Tab Width, Tin (Sn), .8 mm [.031 in] Tab Thickness, 1.5/2.8 Connector System
