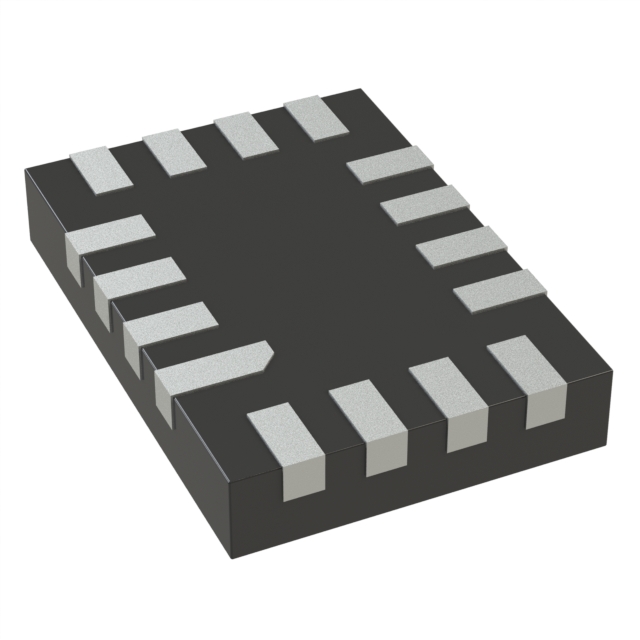

74AVC4T245GU-Q100X
ActiveFreescale Semiconductor - NXP
74AVC4T245-Q100 - 4-BIT DUAL SUPPLY TRANSLATING TRANSCEIVER WITH CONFIGURABLE VOLTAGE TRANSLATION; 3-STATE@EN-US QFN 16-PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
74AVC4T245GU-Q100X
ActiveFreescale Semiconductor - NXP
74AVC4T245-Q100 - 4-BIT DUAL SUPPLY TRANSLATING TRANSCEIVER WITH CONFIGURABLE VOLTAGE TRANSLATION; 3-STATE@EN-US QFN 16-PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 74AVC4T245GU-Q100X |
|---|---|
| Current - Output High, Low [custom] | 12 mA |
| Current - Output High, Low [custom] | 12 mA |
| Grade | Automotive |
| Logic Type | Translation Transceiver |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 2 |
| Number of Elements | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 3-State |
| Package / Case | 16-XFQFN |
| Qualification | AEC-Q100 |
| Supplier Device Package | 16-XQFN (1.8x2.6) |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.11 | |
| 10 | $ 0.99 | |||
| 25 | $ 0.94 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.72 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.50 | |||
| Digi-Reel® | 1 | $ 1.11 | ||
| 10 | $ 0.99 | |||
| 25 | $ 0.94 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.72 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.50 | |||
| Tape & Reel (TR) | 4000 | $ 0.47 | ||
| 8000 | $ 0.45 | |||
| 12000 | $ 0.43 | |||
Description
General part information
74AVC4T245 Series
Translation Transceiver 2 Element 2 Bit per Element 3-State Output 16-XQFN (1.8x2.6)
Documents
Technical documentation and resources
