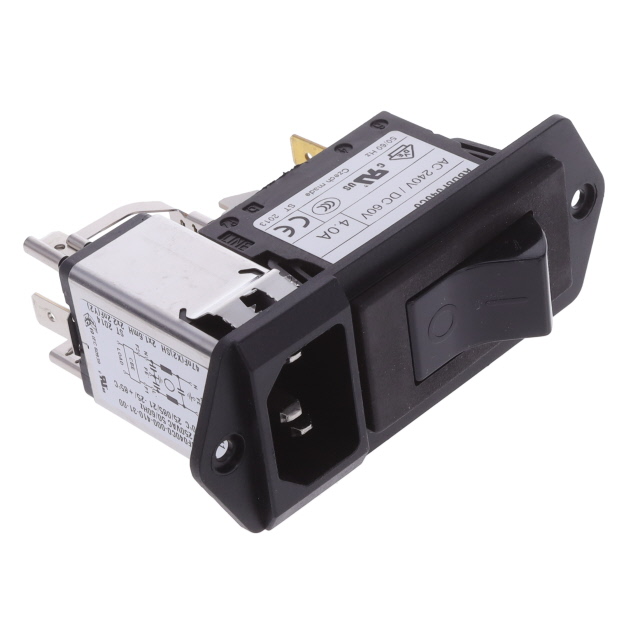

5145.2844.411
ActiveSCHURTER Inc.
POWER ENTRY CONNECTOR, IEC C14 INLET, RECEPTACLE, 4A, 250VAC
Deep-Dive with AI
Search across all available documentation for this part.
5145.2844.411
ActiveSCHURTER Inc.
POWER ENTRY CONNECTOR, IEC C14 INLET, RECEPTACLE, 4A, 250VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5145.2844.411 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | ENEC, cULus |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A |
| Current Rating - Circuit Breaker | 4 A |
| Current Rating - Filter | 4 A |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 29 mm |
| Panel Cutout Dimensions [y] | 72 mm |
| Switch Features | Circuit Breaker, Switch On-Off |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 62.12 | |
| 20 | $ 50.28 | |||
| 40 | $ 47.88 | |||
| 60 | $ 46.53 | |||
| 100 | $ 44.89 | |||
Description
General part information
5145.2844 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
