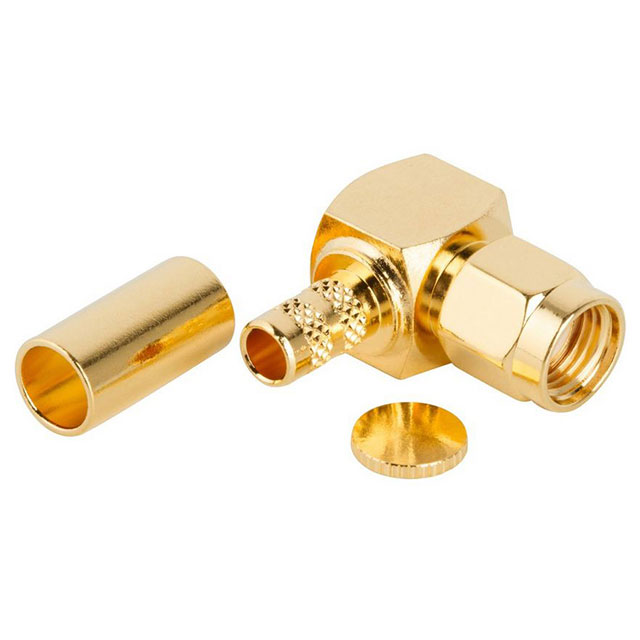

132235RP

Active

Amphenol RF

CONN RPSMA PLUG R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN RPSMA PLUG R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	132235RP

Body Finish	Gold
Body Material	Brass
Cable Group	Belden 7807A, LMR-200
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	375 V

Part	Dielectric Material	Center Contact Material	Shield Termination	Mating Cycles	Mounting Type	Contact Termination	Voltage Rating	Includes	Connector Type	Cable Group	Number of Ports	Connector Style	Body Material	Frequency - Max [Max]	Body Finish	Housing Color	Impedance	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 132235RP	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Crimp	500	Free Hanging (In-Line) Right Angle	Solder	375 V	1 Connector 1 End Cap 1 Ferrule	Female Socket Plug	Belden 7807A LMR-200	1	RP-SMA	Brass	12.4 GHz	Gold	Gold	50 Ohms	Gold	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-SMA Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
