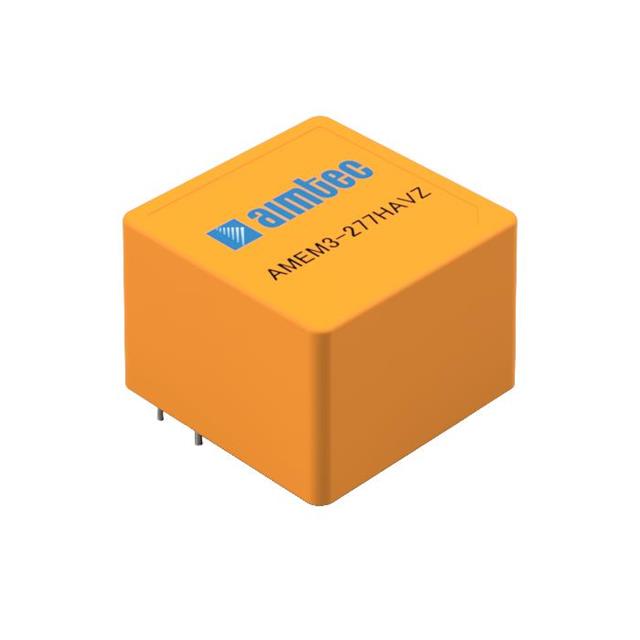

AMEM3-15S277HAVZ

Obsolete

aimtec

AC/DC CONVERTER 15V 3W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMEM3-15S277HAVZ

Obsolete

aimtec

AC/DC CONVERTER 15V 3W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AMEM3-15S277HAVZ

Applications	Household Appliances, ITE (Commercial)
Approval Agency	UL, CE
Current - Output (Max) [Max]	200 mA
Efficiency	79 %
Line Regulation	0.5 %
Load Regulation	1 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	4 Lead
Package / Case	5-DIP Module
Power (Watts)	3 W
Size / Dimension [x]	25.4 mm
Size / Dimension [x]	1 in
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.69 "
Size / Dimension [z]	17.6 mm
Standard Number	60335-1, 62368-1
Type	Enclosed
Voltage - Input [Max]	305 VAC, 430 VDC
Voltage - Input [Min]	100 V, 85 VAC
Voltage - Output 1	15 V
Weight	18.5 g
Weight	0.041 lb

AMEM3 Series

Part	Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Standard Number	Number of Outputs	Line Regulation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Voltage - Output 1	Power (Watts)	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Weight	Weight	Load Regulation	Efficiency	Current - Output (Max) [Max]
aimtec AMEM3-5S277HAVZ	Enclosed	Household Appliances ITE (Commercial)	85 °C	-40 °C	4 Lead	5-DIP Module	60335-1 62368-1	1	0.5 %	25.4 mm	0.69 "	25.4 mm	1 in	25.4 mm	17.6 mm	CE UL	5 V	3 W	Through Hole	85 VAC 100 V	305 VAC 430 VDC	0.04 lb	18 g	1 %	76 %	600 mA
aimtec AMEM3-3S277HAVZ	Enclosed	Household Appliances ITE (Commercial)	85 °C	-40 °C	4 Lead	5-DIP Module	60335-1 62368-1	1	0.5 %	25.4 mm	0.69 "	25.4 mm	1 in	25.4 mm	17.6 mm	CE UL	3.3 V	3 W	Through Hole	85 VAC 100 V	305 VAC 430 VDC	0.04 lb	18 g	1 %	72 %	900 mA
aimtec AMEM3-12S277HAVZ	Enclosed	Household Appliances ITE (Commercial)	85 °C	-40 °C	4 Lead	5-DIP Module	60335-1 62368-1	1	0.5 %	25.4 mm	0.69 "	25.4 mm	1 in	25.4 mm	17.6 mm	CE UL	12 V	3 W	Through Hole	85 VAC 100 V	305 VAC 430 VDC	0.04 lb	18 g	1 %	78 %	250 mA
aimtec AMEM3-9S277HAVZ	Enclosed	Household Appliances ITE (Commercial)	85 °C	-40 °C	4 Lead	5-DIP Module	60335-1 62368-1	1	0.5 %	25.4 mm	0.69 "	25.4 mm	1 in	25.4 mm	17.6 mm	CE UL	9 V	3 W	Through Hole	85 VAC 100 V	305 VAC 430 VDC	0.04 lb	18 g	1 %	78 %	333 mA
aimtec AMEM3-15S277HAVZ	Enclosed	Household Appliances ITE (Commercial)	85 °C	-40 °C	4 Lead	5-DIP Module	60335-1 62368-1	1	0.5 %	25.4 mm	0.69 "	25.4 mm	1 in	25.4 mm	17.6 mm	CE UL	15 V	3 W	Through Hole	85 VAC 100 V	305 VAC 430 VDC	0.041 lb	18.5 g	1 %	79 %	200 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.18
		5	$ 5.83

Description

General part information

AMEM3 Series

Enclosed AC DC Converters 1 Output 15V 200mA 85 ~ 305 VAC, 100 ~ 430 VDC Input
