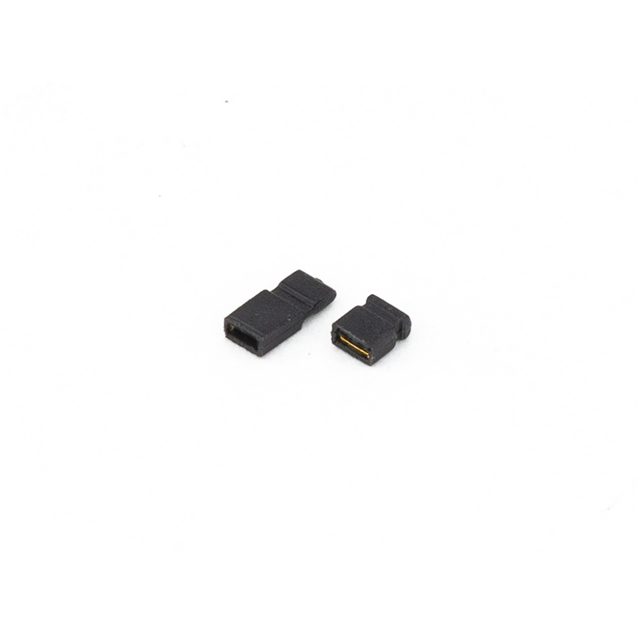

2206-ABB

Active

Oupiin

MINI JUMPER, 1.27MM PITCH, TYPE

Search across all available documentation for this part.

Active

Oupiin

MINI JUMPER, 1.27MM PITCH, TYPE

Technical Specifications

Parameters and characteristics for this part

Specification	2206-ABB

Color	Black
Contact Finish	Gold
Gender	Female Sockets
Height [z]	3 mm
Height [z]	0.118 in
Housing Material	Polyester Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-2
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Type	Closed Top

Part	Color	Pitch [x]	Pitch [x]	Housing Material	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Material Flammability Rating	Gender	Type	Contact Finish	Height [z]	Height [z]
Oupiin 2206-ABB	Black	0.05 in	1.27 mm	Polyester Thermoplastic Glass Filled	1 x 2	2	UL94 V-2	Female Sockets	Closed Top	Gold	3 mm	0.118 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.24

General part information

2 (1 x 2) Position Shunt Connector Black Closed Top 0.050" (1.27mm) Gold

Technical documentation and resources

No documents available
