780-M15-103L011 - 780-M15-103L011

780-M15-103L011

Active
MH Connectors

780-M15-103L011 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

Documents3D Product Image ENMiscellaneous EN+4

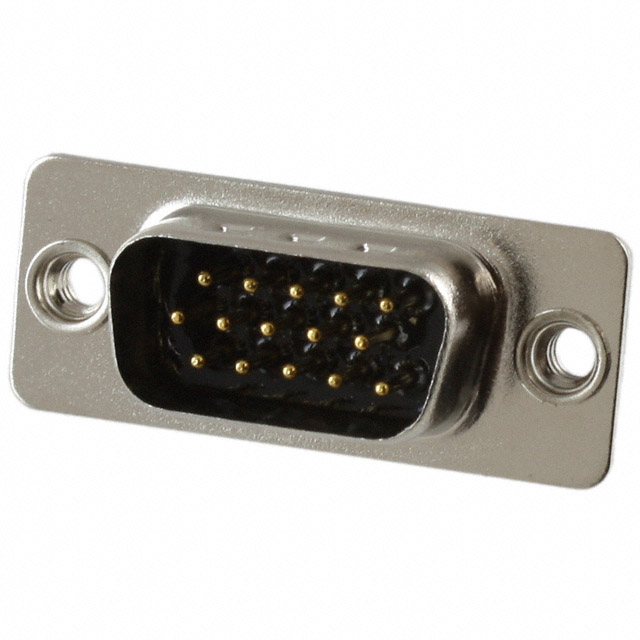

780-M15-103L011 - 780-M15-103L011

780-M15-103L011

Active
MH Connectors

780-M15-103L011 ROHS COMPLIANT: YES

Deep-Dive with AI

Documents3D Product Image ENMiscellaneous EN+4

Technical Specifications

Parameters and characteristics for this part

Specification780-M15-103L011
ColorBlack
Connector StyleHigh Density, D-Sub
Connector TypePlug, Male Pins
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)3 A
Dielectric MaterialPolybutylene Terephthalate (PBT), Glass Filled
FeaturesGrounding Indents
Flange FeatureCable Side
Ingress ProtectionIP67 - Dust Tight, Waterproof
Material Flammability RatingUL94 V-0
Number of Positions15
Number of Rows3
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout [custom]DE, E
Shell Size, Connector Layout [custom]1
Shell Size, Connector Layout [custom]High Density
Wire Gauge [Max]28 AWG
Wire Gauge [Min]24 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 9.15
10$ 8.24
25$ 7.76
40$ 7.56
90$ 7.36
270$ 6.57
450$ 6.17
990$ 5.45
NewarkEach 1$ 10.89
100$ 8.91
250$ 8.16
500$ 7.58
1000$ 7.12

Description

General part information

780-M15 Series

15 Position D-Sub, High Density Plug, Male Pins Connector
