17EHD078SAA000

Active

Amphenol ICC (Commercial Products)

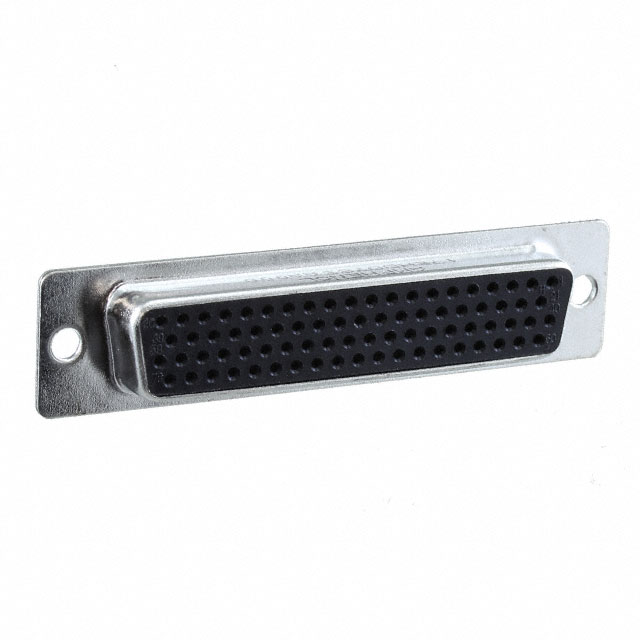

CONN D-SUB HD RCPT 78P SLDR CUP

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD RCPT 78P SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	17EHD078SAA000

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Glass Filled, Polyamide (PA), Nylon
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	78
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Voltage Rating	125 VDC

Part	Contact Type	Shell Material, Finish	Mounting Type	Connector Style	Material Flammability Rating	Current Rating (Amps)	Dielectric Material	Connector Type	Features	Color	Voltage Rating	Flange Feature	Contact Finish	Number of Positions	Contact Form	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Finish Thickness
Amphenol ICC (Commercial Products) 17EHD078PAM000	Signal	Nickel Plated Steel	Free Hanging (In-Line)	D-Sub High Density	UL94 V-0	3 A	Glass Filled Nylon Polyamide (PA)	Male Pins Plug	Grounding Indents	Black	125 VDC	Housing/Shell (Unthreaded)	Gold	78	Stamped	Copper Alloy	105 ░C	-55 °C	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) 17EHD078SAM030	Signal	Nickel Plated Steel	Through Hole	D-Sub High Density	UL94 V-0	3 A	Glass Filled Nylon Polyamide (PA)	Receptacle Female Sockets		Black	125 VDC	Housing/Shell (Unthreaded)	Gold	78	Stamped	Copper Alloy	105 ░C	-55 °C	0.76 Ám	30 Áin	Solder
Amphenol ICC (Commercial Products) 17EHD078SAA000	Signal	Nickel Plated Steel	Free Hanging (In-Line)	D-Sub High Density	UL94 V-0	3 A	Glass Filled Nylon Polyamide (PA)	Receptacle Female Sockets		Black	125 VDC	Housing/Shell (Unthreaded)	Gold	78	Stamped	Copper Alloy	105 ░C	-55 °C				Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

78 Position D-Sub, High Density Receptacle, Female Sockets Connector
