6600-63-04

Active

ELECTROSWITCH

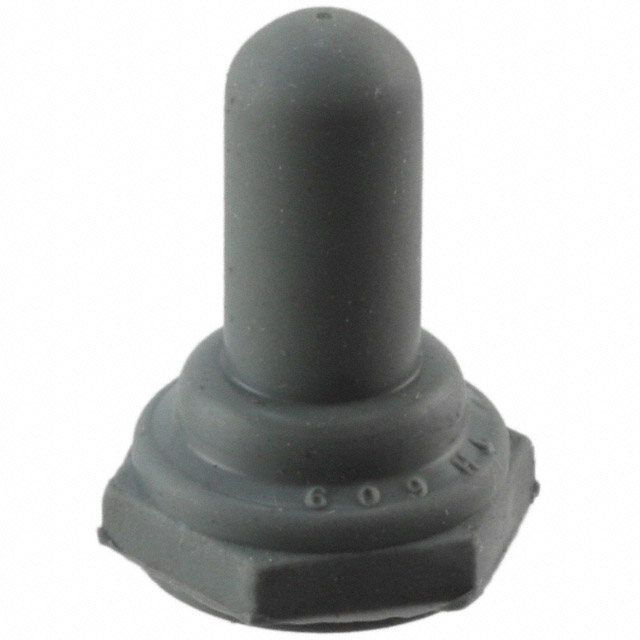

TOGGLE FULL BOOT GRAY

Search across all available documentation for this part.

Active

ELECTROSWITCH

TOGGLE FULL BOOT GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	6600-63-04

Actuator Diameter [diameter]	0.209 "
Actuator Diameter [diameter]	5.31 mm
Color	Gray
For Use With/Related Products	6600 Series
Ingress Protection	Environment Sealed
Material	Silicone Rubber
Mounting Feature	Front of Panel
Operating Temperature [Max]	204 °C
Operating Temperature [Min]	-70 °C
Size / Dimension [z]	0.885 in
Size / Dimension [z]	22.48 mm
Thread Size	15/32-32 NS-2B
Type	Full Boot, Toggle

Part	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Ingress Protection	Mounting Feature	For Use With/Related Products	Size / Dimension [z]	Size / Dimension [z]	Thread Size	Material	Color	Operating Temperature [Max]	Operating Temperature [Min]	Type
ELECTROSWITCH 6600-63-05	0.209 "	5.31 mm	Environment Sealed	Front of Panel	6600 Series	0.945 "	24 mm	15/32-32 NS-2B	Silicone Rubber	Black	204 °C	-70 °C	Full Boot Toggle
ELECTROSWITCH 6600-63-04	0.209 "	5.31 mm	Environment Sealed	Front of Panel	6600 Series	0.885 in	22.48 mm	15/32-32 NS-2B	Silicone Rubber	Gray	204 °C	-70 °C	Full Boot Toggle
ELECTROSWITCH 6600-63-06	0.209 "	5.31 mm	Environment Sealed	Front of Panel	6600 Series	0.945 "	24 mm	15/32-32 NS-2B	Silicone Rubber	Gray	204 °C	-70 °C	Full Boot Toggle
ELECTROSWITCH 6600-63-02	0.1 in	2.54 mm	Environment Sealed	Front of Panel	6600 Series	0.412 in	10.46 mm	15/32-32 NS-2B	Silicone Rubber	Gray	204 °C	-70 °C	Half Boot Toggle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TOGGLE FULL BOOT GRAY
