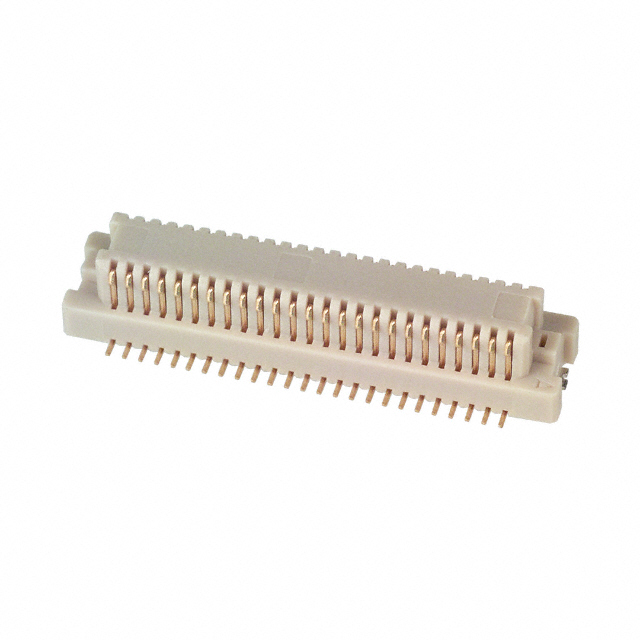

DF15(1.8)-50DS-0.65V(56)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 50POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF15(1.8)-50DS-0.65V(56)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board [z]	4 mm
Height Above Board [z]	0.157 "
Mated Stacking Heights	6 mm, 5 mm, 8 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.026 in
Pitch [x]	0.65 mm

Part	Features	Number of Rows	Height Above Board [z]	Height Above Board [z]	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Connector Type	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
Hirose Electric USA, Inc. DF15(1.8)-30DS-0.65V(56)	Board Guide Solder Retention	2	4 mm	0.157 "	Surface Mount	Gold	0.026 in	0.65 mm	Center Strip Contacts Receptacle	5 mm 6 mm 8 mm	4 Áin	0.1 Ám	30
Hirose Electric USA, Inc. DF15(1.8)-30DS-0.65V(50)	Board Guide Solder Retention	2	4 mm	0.157 "	Surface Mount	Gold	0.026 in	0.65 mm	Center Strip Contacts Receptacle	5 mm 6 mm 8 mm			30
Hirose Electric USA, Inc. DF15(1.8)-50DS-0.65V(56)	Board Guide Solder Retention	2	4 mm	0.157 "	Surface Mount	Gold	0.026 in	0.65 mm	Center Strip Contacts Receptacle	5 mm 6 mm 8 mm	4 Áin	0.1 Ám	50

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
