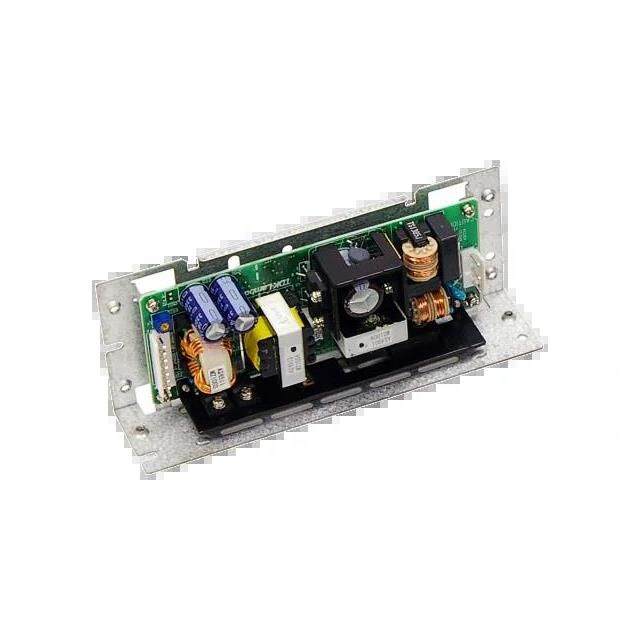

ZWS50BAF-5/L

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, ADJUSTABLE, FIXED, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsZWS50BAF/L Spec Datasheet +4

ZWS50BAF-5/L

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, ADJUSTABLE, FIXED, 5 V

Deep-Dive with AI

DocumentsZWS50BAF/L Spec Datasheet +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZWS50BAF-5/L

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	10 A
Efficiency	84 %
Features	Load Sharing, Universal Input, PFC, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	50 W
Size / Dimension [x]	132 mm
Size / Dimension [x]	5.2 in
Size / Dimension [y]	50 mm
Size / Dimension [y]	1.97 "
Size / Dimension [z]	1.02 in
Size / Dimension [z]	26 mm
Type	Open Frame
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

ZWS50BAF Series

Part	Power (Watts)	Features	Type	Mounting Type	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Current - Output 1	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Applications	Voltage - Output 1
TDK-LAMBDA ZWS50BAF-12/L	50 W	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	Open Frame	Chassis Mount	CE	85 VAC	265 VAC	1	4.3 A	3000 V	-10 °C	70 °C	1.02 in	50 mm	132 mm	1.97 "	26 mm	5.2 in	85 %	ITE (Commercial)	12 V
TDK-LAMBDA ZWS50BAF-48/L	50 W	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	Open Frame	Chassis Mount	CE	85 VAC	265 VAC	1	1.1 A	3000 V	-10 °C	70 °C	1.02 in	50 mm	132 mm	1.97 "	26 mm	5.2 in	86 %	ITE (Commercial)	48 V
TDK-LAMBDA ZWS50BAF-5/A	50 W	Adjustable Output PFC Universal Input	Enclosed	Chassis Mount	CE	85 VAC	265 VAC	1	10 A	3000 V	-10 °C	70 °C	1.02 in	50 mm	132 mm	1.97 "	26 mm	5.2 in	84 %	ITE (Commercial)	5 V
TDK-LAMBDA ZWS50BAF-5/L	50 W	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	Open Frame	Chassis Mount	CE	85 VAC	265 VAC	1	10 A	3000 V	-10 °C	70 °C	1.02 in	50 mm	132 mm	1.97 "	26 mm	5.2 in	84 %	ITE (Commercial)	5 V
TDK-LAMBDA ZWS50BAF-24/L	50 W	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	Open Frame	Chassis Mount	CE	85 VAC	265 VAC	1	2.1 A	3000 V	-10 °C	70 °C	1.02 in	50 mm	132 mm	1.97 "	26 mm	5.2 in	87 %	ITE (Commercial)	24 V
TDK-LAMBDA ZWS50BAF-12/CO2	50 W	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	Conformal Coated Open Frame	Chassis Mount	CE	85 VAC	265 VAC	1	4.3 A	3000 V	-10 °C	70 °C	1.02 in	50 mm	132 mm	1.97 "	26 mm	5.2 in	85 %	ITE (Commercial)	12 V
TDK-LAMBDA ZWS50BAF-5/CO2	50 W	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	Conformal Coated Open Frame	Chassis Mount	CE	85 VAC	265 VAC	1	10 A	3000 V	-10 °C	70 °C	1.02 in	50 mm	132 mm	1.97 "	26 mm	5.2 in	84 %	ITE (Commercial)	5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 72.17
Newark	Each	1	$ 72.17
		10	$ 71.05
		25	$ 64.25
		50	$ 62.59

Description

General part information

ZWS50BAF Series

Open Frame AC DC Converters 1 Output 5V 85 ~ 265 VAC Input
