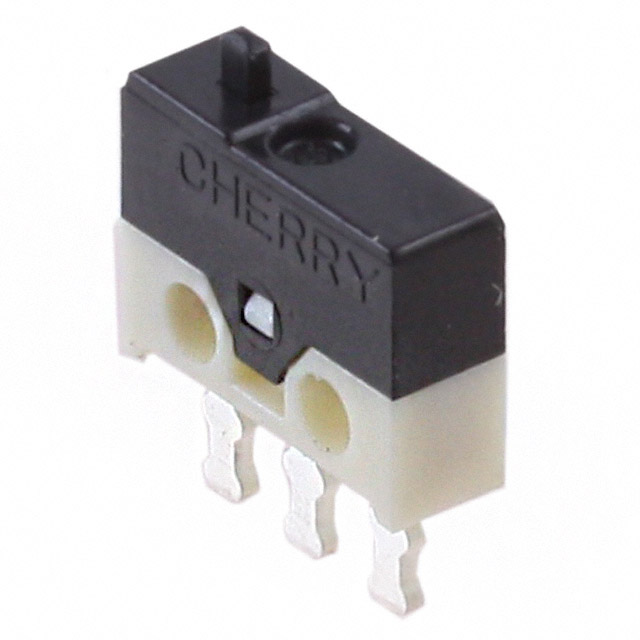

DH2CB1AA
ObsoleteZF Electronics
SWITCH SNAP ACTION SPDT 0.5A 30V
Deep-Dive with AI
Search across all available documentation for this part.
DH2CB1AA
ObsoleteZF Electronics
SWITCH SNAP ACTION SPDT 0.5A 30V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DH2CB1AA |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 500 mA |
| Electrical Life | 30000 Cycles |
| Ingress Protection | IP40 |
| Mounting Type | Chassis Mount |
| Operating Force | 90 gf |
| Operating Position [custom] | 0.22 in |
| Operating Position [custom] | 5.6 mm |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.004 in |
| Overtravel | 0.1 mm |
| Pretravel | 0.35 mm |
| Pretravel | 0.014 in |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.99 | |
| 10 | $ 4.13 | |||
| 25 | $ 3.83 | |||
| 50 | $ 3.62 | |||
| 100 | $ 3.42 | |||
Description
General part information
DH2C Series
Switch SPDT Chassis Mount
