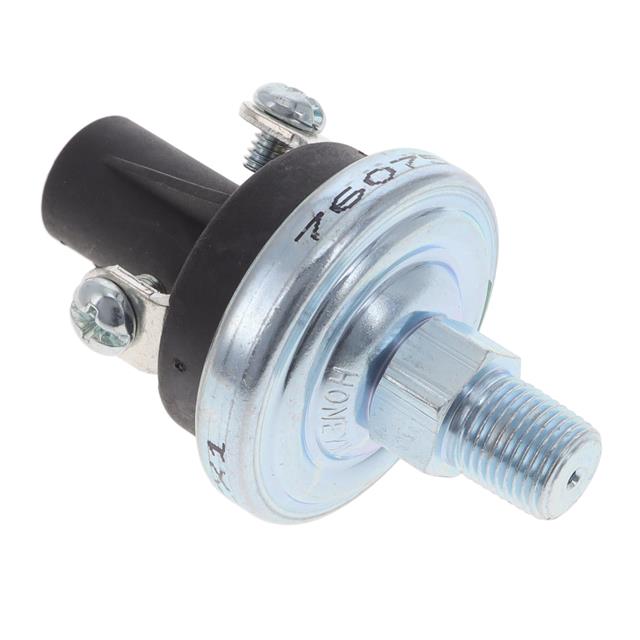

76075-00001000-01
ActiveHoneywell Sensing and Productivity Solutions
SWITCH PRESSURE DUAL CIRC 100PSI
Deep-Dive with AI
Search across all available documentation for this part.
76075-00001000-01
ActiveHoneywell Sensing and Productivity Solutions
SWITCH PRESSURE DUAL CIRC 100PSI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 76075-00001000-01 |
|---|---|
| Applications | Industrial Automation |
| Maximum Pressure [Max] | 500 PSI |
| Maximum Pressure [Max] | 3447.38 kPa |
| Operating Pressure | 689.48 kPa |
| Operating Pressure | 100 PSI |
| Operating Temperature [Max] | 121 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | SPDT |
| Package / Case | Cylinder, Threaded |
| Port Size | 0.125 " |
| Port Size | 3.18 mm |
| Port Size | Male |
| Port Style | Threaded |
| Pressure Type | Switch |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 69.19 | |
| 5 | $ 60.19 | |||
Description
General part information
76075 Series
SWITCH PRESSURE DUAL CIRC 100PSI
Documents
Technical documentation and resources
