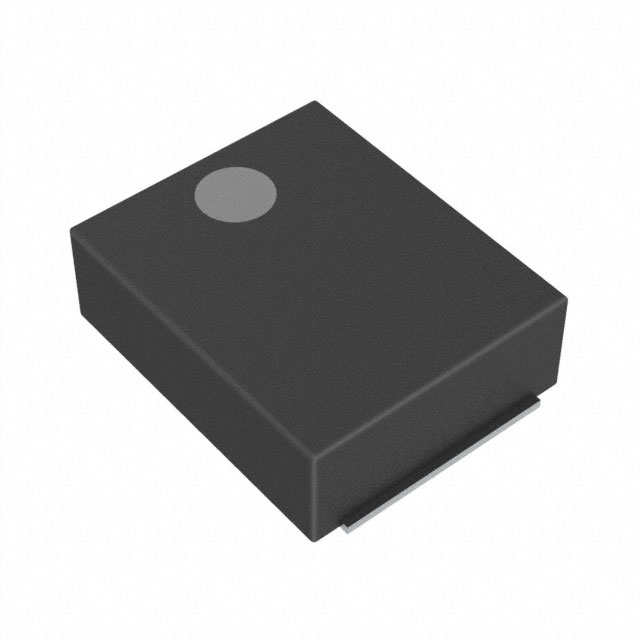

25TQS10MED

Obsolete

Panasonic Industrial Automation Sales

CAP TANT POLY 10UF 25V 1411

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

CAP TANT POLY 10UF 25V 1411

Technical Specifications

Parameters and characteristics for this part

Specification	25TQS10MED

Capacitance	10 µF
ESR (Equivalent Series Resistance)	100 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	1.2 mm
Height - Seated (Max) [Max]	0.047 in
Lifetime @ Temp.	1000 Hrs
Manufacturer Size Code	B1S
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	1411
Package / Case	3528 Metric
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	25 VDC

Part	Tolerance	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Manufacturer Size Code	Voltage - Rated	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Lifetime @ Temp.	Capacitance	Type	ESR (Equivalent Series Resistance)
Panasonic Industrial Automation Sales 25TQS10MED	20 %	General Purpose	1.2 mm	0.047 in	1411	3528 Metric	105 ░C	-55 °C	Surface Mount	B1S	25 VDC	0.11 in	2.8 mm	0.138 "	3.5 mm	1000 Hrs	10 µF	Molded	100 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 µF Molded Tantalum Polymer Capacitor 25 V 1411 (3528 Metric) 100mOhm @ 100kHz
