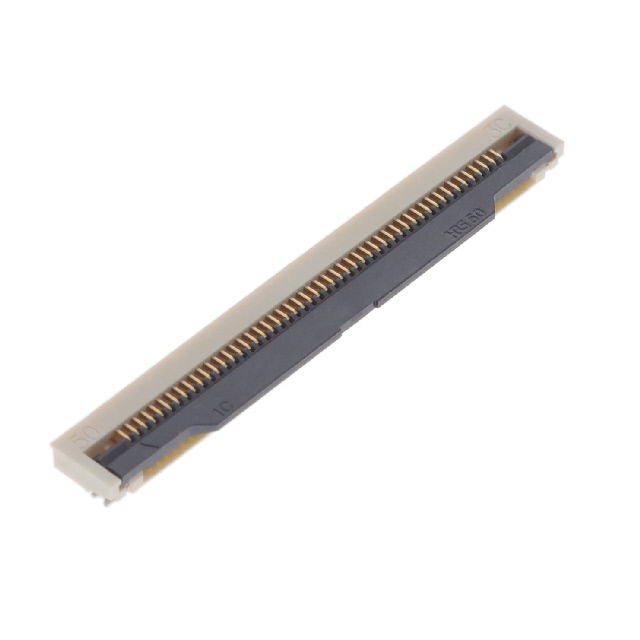

TF49-50S-0.5SH(800)
ActiveHirose Electric USA, Inc.
0.5MM PITCH, 1.5MM HEIGHT, FRONT-FLIP, FPC/FFC ZIF CONNECTORS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TF49-50S-0.5SH(800)
ActiveHirose Electric USA, Inc.
0.5MM PITCH, 1.5MM HEIGHT, FRONT-FLIP, FPC/FFC ZIF CONNECTORS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TF49-50S-0.5SH(800) |
|---|---|
| Actuator Color | Black |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Tabbed |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Gold |
| Contact Finish Thickness | 1.97 Áin |
| Contact Finish Thickness | 0.05 Ám |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5 A |
| Features | Zero Insertion Force (ZIF), Solder Retention |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 0.059 in |
| Height Above Board | 1.5 mm |
| Housing Color | Natural |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 50 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
