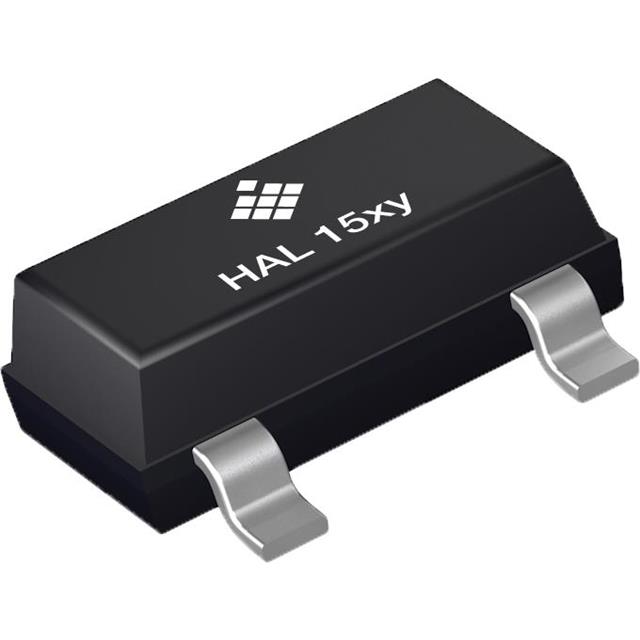

HAL1510 SU
ActiveEPCOS - TDK Electronics
MAGNETIC SWITCH UNIPOLAR SOT23
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HAL1510 SU
ActiveEPCOS - TDK Electronics
MAGNETIC SWITCH UNIPOLAR SOT23
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HAL1510 SU |
|---|---|
| Current - Supply (Max) [Max] | 1.6 mA |
| Function | Unipolar Switch |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Output Type | Open Drain |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Qualification | AEC-Q100 |
| Sensing Range | 7 mT, 12 mT |
| Supplier Device Package | SOT-23-3 |
| Technology | Hall Effect |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.79 | |
| 5 | $ 0.66 | |||
| 10 | $ 0.62 | |||
| 25 | $ 0.56 | |||
| 50 | $ 0.52 | |||
| 100 | $ 0.48 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.38 | |||
| 5000 | $ 0.32 | |||
| Digi-Reel® | 1 | $ 0.79 | ||
| 5 | $ 0.66 | |||
| 10 | $ 0.62 | |||
| 25 | $ 0.56 | |||
| 50 | $ 0.52 | |||
| 100 | $ 0.48 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.38 | |||
| 5000 | $ 0.32 | |||
| Tape & Reel (TR) | 10000 | $ 0.30 | ||
| 20000 | $ 0.28 | |||
| 30000 | $ 0.26 | |||
Description
General part information
HAL1510 Series
Digital Switch Unipolar Switch Open Drain Hall Effect SOT-23-3
