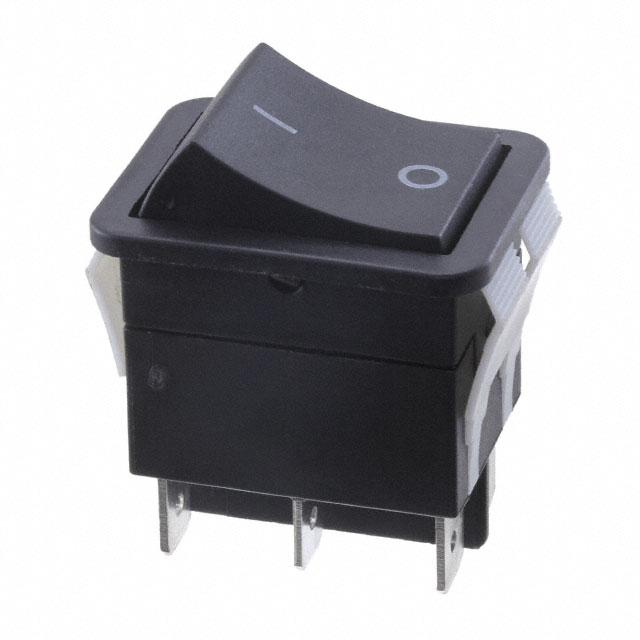

WB24GE1121

Active

E-Switch

SWITCH ROCKER DPDT 16A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER DPDT 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	WB24GE1121

Actuator Marking	O -
Actuator Type	Concave (Curved)
Approval Agency	CE, TUV, cULus
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A
Ingress Protection	IP55 - Dust Protected, Water Resistant
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30 mm
Panel Cutout Dimensions [y]	22 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

Part	Termination Style	Actuator Type	Approval Agency	Switch Function	Actuator Marking	Color - Actuator/Cap	Mounting Type	Ingress Protection	Voltage Rating - AC	Current Rating (Amps)	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Circuit
E-Switch WB24GE1121	Quick Connect - 0.250" (6.3mm)	Concave (Curved)	CE cULus TUV	On-On	O -	Black	Panel Mount Snap-In	IP55 - Dust Protected Water Resistant	125 V	16 A	30 mm	22 mm	DPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPDT 16A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
