895-051-524-103

Active

EDAC Inc.

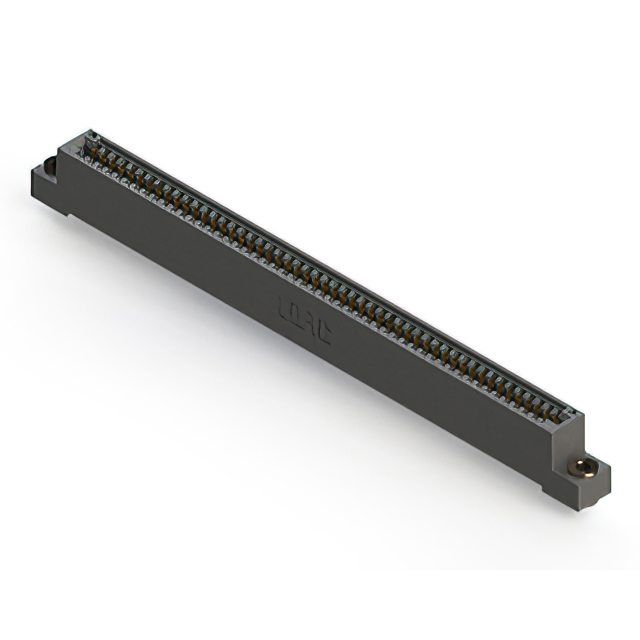

CONN EDGE SINGLE FML 51POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-051-524-103

Active

EDAC Inc.

CONN EDGE SINGLE FML 51POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-051-524-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	51
Number of Positions/Bay/Row [custom]	51
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

895-051 Series

...

Part	Contact Material	Material - Insulation	Termination Rows	Read Out	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row [custom]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Card Type	Termination	Contact Type	Mounting Type	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Contact Finish	Flange Feature	Flange Feature
EDAC Inc. 895-051-544-404	Copper Alloy	Polyphenylene Sulfide (PPS)	1	Single	0.156 in	Top Mount Opening Unthreaded	3.96 mm	51	2.54 mm	0.1 in	125 °C	-40 °C	51	1	10 Áin	0.25 Ám	Non Specified - Single Edge	Wire Wrap	Cantilever	Through Hole	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Gold
EDAC Inc. 895-051-524-103	Copper Alloy	Polyphenylene Sulfide (PPS)	1	Single	0.116 in	Floating Bobbin Flush Mount	2.95 mm	51	2.54 mm	0.1 in	125 °C	-40 °C	51	1	10 Áin	0.25 Ám	Non Specified - Single Edge	Solder	Cantilever	Through Hole	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Gold
EDAC Inc. 895-051-500-103	Copper Alloy	Polyphenylene Sulfide (PPS)	1	Single	0.116 in	Floating Bobbin Flush Mount	2.95 mm	51	2.54 mm	0.1 in	125 °C	-40 °C	51	1	10 Áin	0.25 Ám	Non Specified - Single Edge	Solder Eyelet(s)	Cantilever	Through Hole	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Gold
EDAC Inc. 895-051-542-407	Copper Alloy	Polyphenylene Sulfide (PPS)	1	Single		M3 Threaded Insert Top Mount Opening		51	2.54 mm	0.1 in	125 °C	-40 °C	51	1	10 Áin	0.25 Ám	Non Specified - Single Edge	Wire Wrap	Cantilever	Through Hole	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Gold
EDAC Inc. 895-051-540-407	Copper Alloy	Polyphenylene Sulfide (PPS)	1	Single		M3 Threaded Insert Top Mount Opening		51	2.54 mm	0.1 in	125 °C	-40 °C	51	1	10 Áin	0.25 Ám	Non Specified - Single Edge	Wire Wrap	Cantilever	Through Hole	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Gold
EDAC Inc. 895-051-541-101	Copper Alloy	Polyphenylene Sulfide (PPS)	1	Single				51	2.54 mm	0.1 in	125 °C	-40 °C	51	1	10 Áin	0.25 Ám	Non Specified - Single Edge	Wire Wrap	Cantilever	Through Hole	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Gold
EDAC Inc. 895-051-540-404	Copper Alloy	Polyphenylene Sulfide (PPS)	1	Single	0.156 in	Top Mount Opening Unthreaded	3.96 mm	51	2.54 mm	0.1 in	125 °C	-40 °C	51	1	10 Áin	0.25 Ám	Non Specified - Single Edge	Wire Wrap	Cantilever	Through Hole	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Gold
EDAC Inc. 895-051-525-412	Copper Alloy	Polyphenylene Sulfide (PPS)	1	Single		Side Mount Opening Unthreaded		51	2.54 mm	0.1 in	125 °C	-40 °C	51	1	10 Áin	0.25 Ám	Non Specified - Single Edge	Solder	Cantilever	Through Hole	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Gold	3.25 mm	0.128 in
EDAC Inc. 895-051-540-612	Copper Alloy	Polyphenylene Sulfide (PPS)	1	Single		Side Mount Opening Unthreaded		51	2.54 mm	0.1 in	125 °C	-40 °C	51	1	10 Áin	0.25 Ám	Non Specified - Single Edge	Wire Wrap	Cantilever	Through Hole	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Gold	3.25 mm	0.128 in
EDAC Inc. 895-051-524-412	Copper Alloy	Polyphenylene Sulfide (PPS)	1	Single		Side Mount Opening Unthreaded		51	2.54 mm	0.1 in	125 °C	-40 °C	51	1	10 Áin	0.25 Ám	Non Specified - Single Edge	Solder	Cantilever	Through Hole	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Gold	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 106.58
Newark	Each	1	$ 127.91
		100	$ 96.95
		250	$ 85.64
		500	$ 77.86
		1000	$ 62.13

Description

General part information

895-051 Series

51 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
