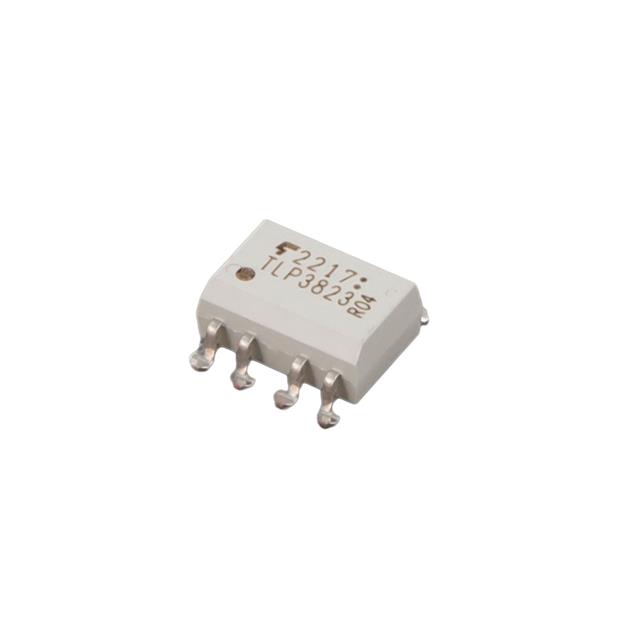

TLP3823(LF1,F

Active

Toshiba Semiconductor and Storage

SSR RELAY SPST-NO 3A 0-100V

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

SSR RELAY SPST-NO 3A 0-100V

Technical Specifications

Parameters and characteristics for this part

Part	On-State Resistance (Max) [Max]	Approval Agency	Supplier Device Package	Load Current	Voltage - Load [Max]	Termination Style	Voltage - Input	Mounting Type	Output Type	Operating Temperature [Min]	Operating Temperature [Max]
Toshiba Semiconductor and Storage TLP3823F(LF4,F	150 mOhms	cUL UL	8-SMD	3 A	100 V	Gull Wing	1.64 VDC	Surface Mount	AC DC	-40 °C	110 °C
Toshiba Semiconductor and Storage TLP3825F(LF4,F	500 mOhm	CSA cUL UL	8-SMD	1.5 A	200 V	Gull Wing	1.64 VDC	Surface Mount	AC DC	-40 °C	110 °C
Toshiba Semiconductor and Storage TLP3823(TP5,F	150 mOhms	cUL UL	8-SMD	3 A	100 V	Gull Wing	1.64 VDC	Surface Mount	AC DC	-40 °C	110 °C
Toshiba Semiconductor and Storage TLP3825(TP5,F	500 mOhm	CSA cUL UL	8-SMD	1.5 A	200 V	Gull Wing	1.64 VDC	Surface Mount	AC DC	-40 °C	110 °C
Toshiba Semiconductor and Storage TLP3823(LF1,F	150 mOhms	cUL UL	8-SMD	3 A	100 V	Gull Wing	1.64 VDC	Surface Mount	AC DC	-40 °C	110 °C
Toshiba Semiconductor and Storage TLP3825(LF1,F	500 mOhm	CSA cUL UL	8-SMD	1.5 A	200 V	Gull Wing	1.64 VDC	Surface Mount	AC DC	-40 °C	110 °C
Toshiba Semiconductor and Storage TLP3825(LF5,F	500 mOhm	CSA cUL UL	8-SMD	1.5 A	200 V	Gull Wing	1.64 VDC	Surface Mount	AC DC	-40 °C	110 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) 8-SMD, Gull Wing
