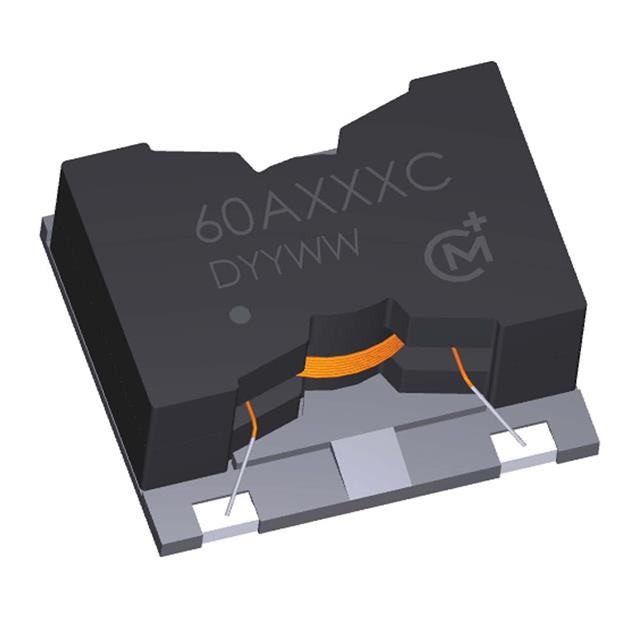

60A363C

Active

Murata Power Solutions Inc.

GENERAL PURPOSE INDUCTOR, 36UH, 10%, 1 ELEMENT, SMD, 8775, CHIP, 8775, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +1

60A363C

Active

Murata Power Solutions Inc.

GENERAL PURPOSE INDUCTOR, 36UH, 10%, 1 ELEMENT, SMD, 8775, CHIP, 8775, ROHS COMPLIANT

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	60A363C

Current - Saturation (Isat)	8.8 A
Current Rating (Amps)	6.4 A
DC Resistance (DCR)	20 mOhm
Frequency - Self Resonant	11 MHz
Height - Seated (Max) [Max] [z]	12 mm
Height - Seated (Max) [Max] [z]	0.472 "
Inductance	36 µH
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Shielding	Unshielded
Size / Dimension [x]	22 mm
Size / Dimension [x]	0.866 in
Size / Dimension [y]	19 mm
Size / Dimension [y]	0.748 in
Tolerance	10 %
Type	Wirewound

60A Series

Part	Tolerance	Mounting Type	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency - Self Resonant	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Inductance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Saturation (Isat)	DC Resistance (DCR)	Type	Inductance Frequency - Test	DC Resistance (DCR) [Max]
Murata Power Solutions Inc. 60A313C	10 %	Surface Mount	Nonstandard	12 mm	0.472 "	12 MHz	6.8 A	85 °C	-40 °C	Unshielded	31.4 µH	19 mm	0.748 in	22 mm	0.866 in	9.5 A	18 mOhm	Wirewound	100 kHz
Murata Power Solutions Inc. 60A363C	10 %	Surface Mount	Nonstandard	12 mm	0.472 "	11 MHz	6.4 A	85 °C	-40 °C	Unshielded	36 µH	19 mm	0.748 in	22 mm	0.866 in	8.8 A	20 mOhm	Wirewound	100 kHz
Murata Power Solutions Inc. 60A583C	10 %	Surface Mount	Nonstandard	12 mm	0.472 "	8 MHz	4.9 A	85 °C	-40 °C	Unshielded	57.8 µH	19 mm	0.748 in	22 mm	0.866 in	6.2 A		Wirewound	100 kHz	36 mOhm
Murata Power Solutions Inc. 60A782C	10 %	Surface Mount	Nonstandard	12 mm	0.472 "	26 MHz	13.5 A	85 °C	-40 °C	Unshielded	7.8 µH	19 mm	0.748 in	22 mm	0.866 in	19 A		Wirewound	100 kHz	6 mOhm
Murata Power Solutions Inc. 60A163C	10 %	Surface Mount	Nonstandard	12 mm	0.472 "	17 MHz	9.6 A	85 °C	-40 °C	Unshielded	16 µH	19 mm	0.748 in	22 mm	0.866 in	13 A		Wirewound	100 kHz	9 mOhm
Murata Power Solutions Inc. 60A233C	10 %	Surface Mount	Nonstandard	12 mm	0.472 "	13 MHz	8.4 A	85 °C	-40 °C	Unshielded	23 µH	19 mm	0.748 in	22 mm	0.866 in	11 A	12 mOhm	Wirewound	100 kHz
Murata Power Solutions Inc. 60A273C	10 %	Surface Mount	Nonstandard	12 mm	0.472 "	13 MHz	7.5 A	85 °C	-40 °C	Unshielded	27 µH	19 mm	0.748 in	22 mm	0.866 in	10 A		Wirewound	100 kHz	15 mOhm
Murata Power Solutions Inc. 60A582C	10 %	Surface Mount	Nonstandard	12 mm	0.472 "	31 MHz	14.5 A	85 °C	-40 °C	Unshielded	5.8 µH	19 mm	0.748 in	22 mm	0.866 in	22 A		Wirewound	100 kHz	5 mOhm
Murata Power Solutions Inc. 60A413C	10 %	Surface Mount	Nonstandard	12 mm	0.472 "	10 MHz	5.6 A	85 °C	-40 °C	Unshielded	41 µH	19 mm	0.748 in	22 mm	0.866 in	8.4 A		Wirewound	100 kHz	26 mOhm
Murata Power Solutions Inc. 60A193C	10 %	Surface Mount	Nonstandard	12 mm	0.472 "	15 MHz	8.5 A	85 °C	-40 °C	Unshielded	19.4 µH	19 mm	0.748 in	22 mm	0.866 in			Wirewound	100 kHz	11 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.73
	Digi-Reel®	1	$ 1.73
	Tape & Reel (TR)	200	$ 1.73
		600	$ 1.69
		1000	$ 1.66
Newark	Each (Supplied on Cut Tape)	1	$ 1.93

Description

General part information

60A Series

GENERAL PURPOSE INDUCTOR, 36UH, 10%, 1 ELEMENT, SMD, 8775, CHIP, 8775, ROHS COMPLIANT
