K86X-ED-15P-BRJ

Active

Kycon, Inc.

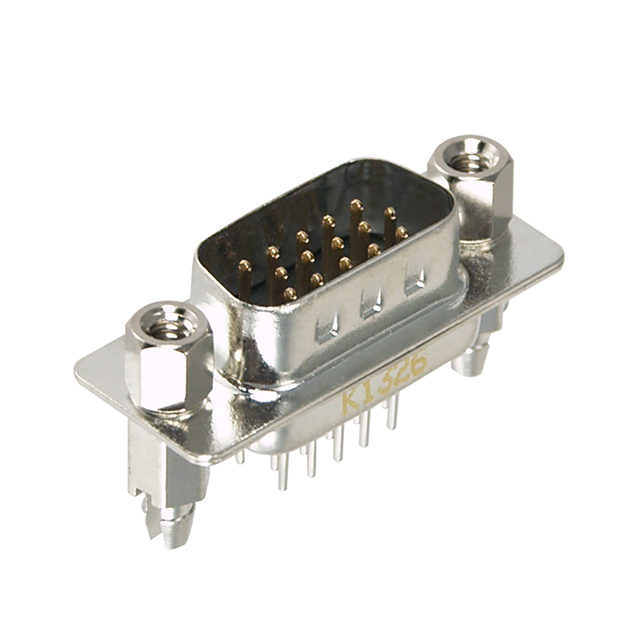

CONN D-SUB HD PLUG 15P VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG3LX-188S1-FF-GY1 Datasheet

K86X-ED-15P-BRJ

Active

Kycon, Inc.

CONN D-SUB HD PLUG 15P VERT SLDR

Deep-Dive with AI

DocumentsG3LX-188S1-FF-GY1 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K86X-ED-15P-BRJ

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	1.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Board Side (4-40), Mating Side, Female Screwlock (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder
Voltage Rating	30 VAC

K86X-ED Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Color	Flange Feature	Contact Type	Shell Material, Finish	Termination	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Voltage Rating	Contact Form	Features	Contact Finish Thickness	Contact Finish	Number of Rows	Number of Positions	Connector Style	Contact Material	Current Rating (Amps)	Dielectric Material	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
Kycon, Inc. K86X-ED-15P-BRJ	105 ░C	-55 °C	UL94 V-0	Black	Board Side (4-40) Mating Side Female Screwlock (4-40)	Signal	Nickel Plated Steel	Solder	Male Pins Plug	DE E	1	High Density	30 VAC	Stamped	Board Lock Grounding Indents	Flash	Gold	3	15	D-Sub High Density	Brass	1.5 A	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole
Kycon, Inc. K86X-ED-15S	75 ░C	-55 °C	UL94 V-0	Black	Housing/Shell (Unthreaded)	Signal	Nickel Plated Steel	Solder	Receptacle Female Sockets	DE E	1	High Density	30 VAC	Stamped		Flash	Gold	3	15	D-Sub High Density	Brass	1.5 A	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole
Kycon, Inc. K86X-ED-15P-BR	105 ░C	-55 °C	UL94 V-0	Black	4-40 Board Side	Signal	Nickel Plated Steel	Solder	Male Pins Plug	DE E	1	High Density	30 VAC	Stamped	Board Lock Grounding Indents	Flash	Gold	3	15	D-Sub High Density	Brass	1.5 A	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole
Kycon, Inc. K86X-ED-15P-30	105 ░C	-55 °C	UL94 V-0	Black	Housing/Shell (Unthreaded)	Signal	Nickel Plated Steel	Solder	Male Pins Plug	DE E	1	High Density	30 VAC	Stamped	Grounding Indents		Gold	3	15	D-Sub High Density	Brass	1.5 A	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	0.76 Ám	30 Áin
