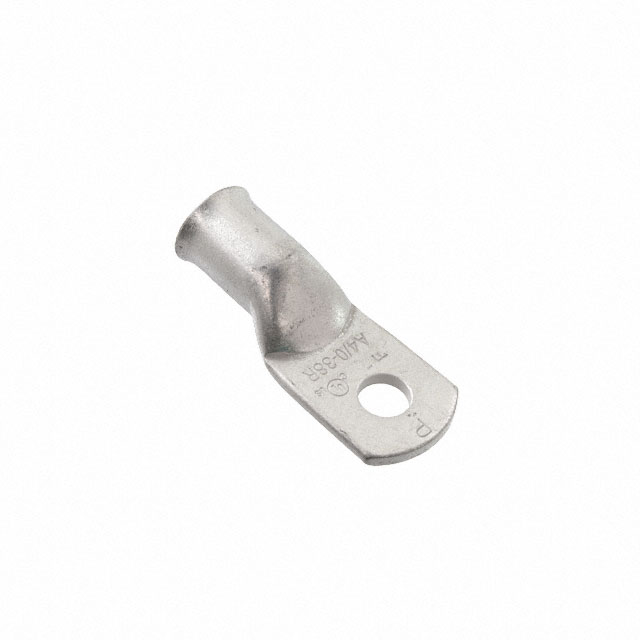

A4/0-38R-C

Active

Panduit Corp

LUG TERMINAL, PAN LUG SERIES, CRIMP, 0000 AWG, COMPRESSION LUG, M10

Search across all available documentation for this part.

Active

Panduit Corp

LUG TERMINAL, PAN LUG SERIES, CRIMP, 0000 AWG, COMPRESSION LUG, M10

Technical Specifications

Parameters and characteristics for this part

Specification	A4/0-38R-C

Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Non-Insulated
Length - Overall	65.28 mm
Length - Overall [x]	2.57 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	3/8 Stud
Terminal Type	Circular Tubular (Battery Lugs)
Termination	Crimp
Thickness	0.12 in
Thickness	3.05 mm
Width - Outer Edges [y]	1.02 in
Width - Outer Edges [y]	25.91 mm
Wire Gauge	4 aught AWG

Terminals Battery Cable Lug, 4/0 AWG, 1/2" Stud

Part	Thickness	Thickness	Terminal Type	Mounting Type	Wire Gauge	Stud/Tab Size	Length - Overall	Length - Overall [x]	Contact Material	Contact Finish	Width - Outer Edges [y]	Width - Outer Edges [y]	Termination	Insulation
Panduit Corp A4/0-38R-C	0.12 in	3.05 mm	Circular Tubular (Battery Lugs)	Free Hanging (In-Line)	4 aught AWG	3/8 Stud	65.28 mm	2.57 in	Copper	Electro-Tin	1.02 in	25.91 mm	Crimp	Non-Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminals Battery Cable Lug, 4/0 AWG, 1/2" Stud
