009158016030061

Active

Kyocera AVX

FYE INDUSTRIAL - FALCON / TAPE/REEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Kyocera AVX

FYE INDUSTRIAL - FALCON / TAPE/REEL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Mounting Type	Number of Positions	Contact Finish	Features	Height Above Board	Height Above Board	Mated Stacking Heights [Min]	Mated Stacking Heights [Max]	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Number of Positions
Kyocera AVX 009158020020001	10 Áin	0.25 Ám	2	Surface Mount	20	Gold	Board Guide	1.8 mm	0.071 in	1.9 mm	2.1 mm	0.039 in	1 mm
Kyocera AVX 009158028020001	10 Áin	0.25 Ám	2	Surface Mount	28	Gold	Board Guide	1.8 mm	0.071 in	1.9 mm	2.1 mm	0.039 in	1 mm
Kyocera AVX 009158020030001	10 Áin	0.25 Ám	2	Surface Mount	20	Gold	Board Guide			2.8 mm	3.3 mm	0.039 in	1 mm	0.106 in	2.7 mm
Kyocera AVX 009158028025001	10 Áin	0.25 Ám	2	Surface Mount	28	Gold	Board Guide	1.8 mm	0.071 in	2.1 mm	2.7 mm	0.039 in	1 mm
Kyocera AVX 009158016025062	10 Áin	0.25 Ám	2	Surface Mount		Gold		1.8 mm	0.071 in	2.1 mm	2.7 mm	0.039 in	1 mm			16
Kyocera AVX 009158020020062	10 Áin	0.25 Ám	2	Surface Mount	20	Gold		1.8 mm	0.071 in	1.9 mm	2.1 mm	0.039 in	1 mm
Kyocera AVX 009158016030061	10 Áin	0.25 Ám	2	Surface Mount		Gold	Board Guide			2.8 mm	3.3 mm	0.039 in	1 mm	0.106 in	2.7 mm	16
Kyocera AVX 009158024020001	10 Áin	0.25 Ám	2	Surface Mount	24	Gold	Board Guide	1.8 mm	0.071 in	1.9 mm	2.1 mm	0.039 in	1 mm
Kyocera AVX 009158016020061	10 Ąin	0.25 Ąm	2	Surface Mount		Gold	Board Guide	1.8 mm	0.071 in	1.9 mm	2.1 mm	0.039 in	1 mm			16
Kyocera AVX 009158024030001	10 Áin	0.25 Ám	2	Surface Mount	24	Gold	Board Guide			2.8 mm	3.3 mm	0.039 in	1 mm	0.106 in	2.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

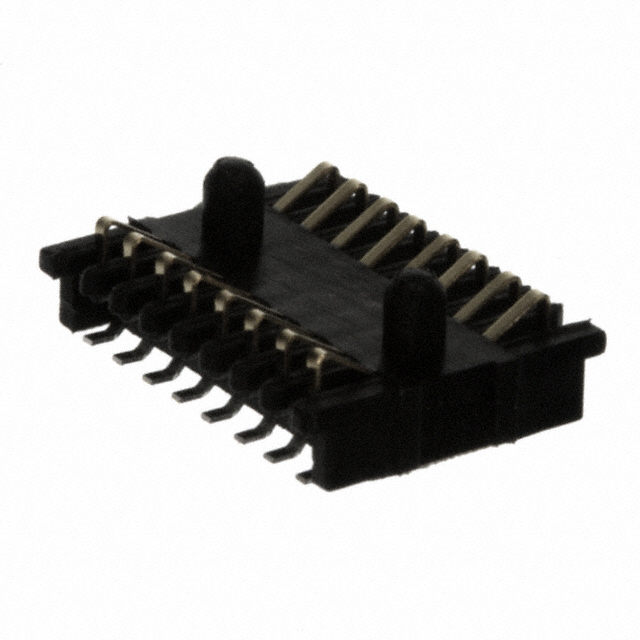

16 Position Connector Stacking Compression Surface Mount Gold
