R30-9401800

Active

Harwin Inc.

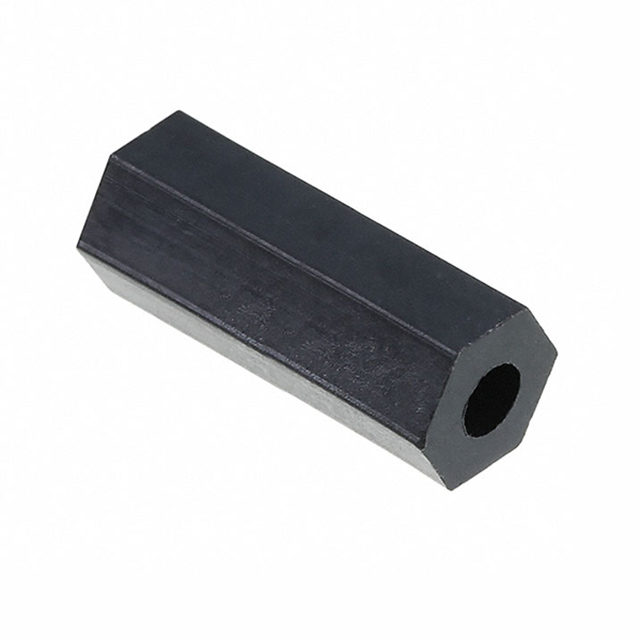

18.00MM THROUGH-HOLE HEX PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

18.00MM THROUGH-HOLE HEX PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Diameter - Outside	Diameter - Outside	Diameter - Outside [custom]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Material	Length - Overall [x]	Length - Overall [x]	Color	Threaded/Unthreaded	Type	Screw, Thread Size	Gender	Between Board Height [z]	Between Board Height [z]	Between Board Height	Between Board Height	Length - Overall	Length - Overall
Harwin Inc. R30-9400800	6.35 mm	0.25 in	0.25 in	0.116 in	2.95 mm	Plastic	8 mm	0.315 in	Natural	Unthreaded	Hex Spacer	M3	Female	0.315 in	8 mm
Harwin Inc. R30-9400700	6.35 mm	0.25 in	0.25 in	0.116 in	2.95 mm	Plastic	7 mm	0.276 in	Natural	Unthreaded	Hex Spacer	M3	Female			0.276 in	7 mm
Harwin Inc. R30-9400300	6.35 mm	0.25 in	0.25 in	0.116 in	2.95 mm	Plastic			Natural	Unthreaded	Hex Spacer	M3	Female			0.118 in	3 mm	0.118 "	3 mm
Harwin Inc. R30-9401800	6.35 mm	0.25 in	0.25 in	0.116 in	2.95 mm	Plastic	18 mm	0.709 "	Natural	Unthreaded	Hex Spacer	M3	Female			0.709 in	18 mm
Harwin Inc. R30-9401000	6.35 mm	0.25 in	0.25 in	0.116 in	2.95 mm	Plastic	10 mm	0.394 "	Natural	Unthreaded	Hex Spacer		Female			0.394 in	10 mm
Harwin Inc. R30-9400600	6.35 mm	0.25 in	0.25 in	0.116 in	2.95 mm	Plastic	6 mm	0.236 in	Natural	Unthreaded	Hex Spacer	M3	Female			0.236 in	6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hex Spacer Unthreaded M3 Plastic 0.709" (18.00mm) Natural
