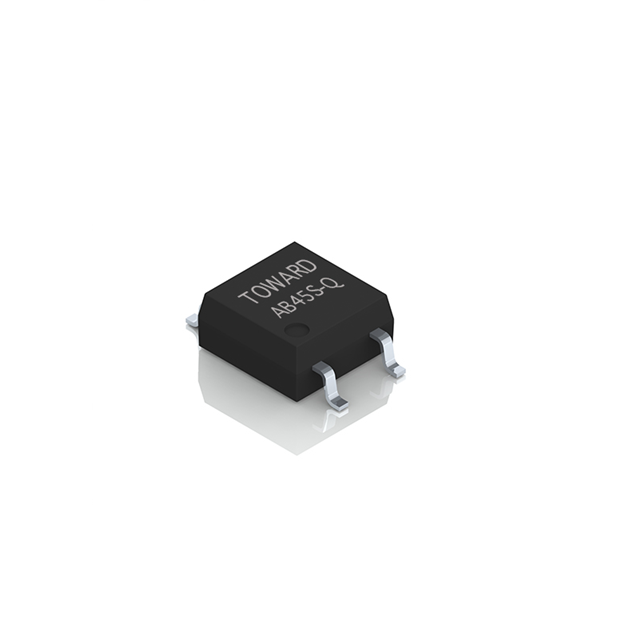

AB45S-Q
ActiveBright Toward Industrial Co., Ltd.
SSR RELAY SPST-NO 200MA 0-60V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AB45S-Q
ActiveBright Toward Industrial Co., Ltd.
SSR RELAY SPST-NO 200MA 0-60V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AB45S-Q |
|---|---|
| Grade | Automotive |
| Load Current | 200 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 5 Ohms |
| Output Type | DC, AC |
| Package / Case | 4-SOP |
| Package / Case | 0.173 in |
| Package / Case | 4.4 mm |
| Qualification | AEC-Q101 |
| Supplier Device Package | 4-SOP |
| Termination Style | Gull Wing |
| Voltage - Input | 1.17 VDC |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.80 | |
| 10 | $ 1.58 | |||
| 25 | $ 1.49 | |||
| 50 | $ 1.43 | |||
| 100 | $ 1.38 | |||
| 300 | $ 1.29 | |||
| 500 | $ 1.25 | |||
| 1000 | $ 1.20 | |||
| 5000 | $ 1.09 | |||
Description
General part information
AB45S Series
Solid State SPST-NO (1 Form A) 4-SOP (0.173", 4.40mm)
