M80-4172098
ActiveHarwin Inc.

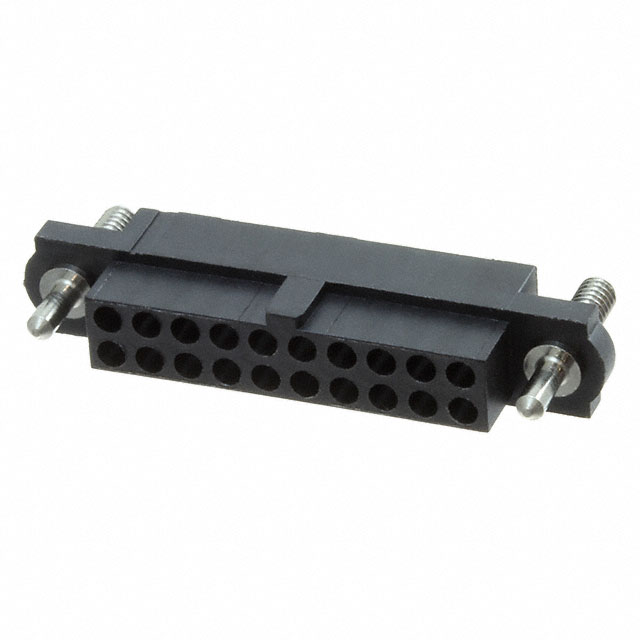

CONN RCPT HSG 20POS 2.00MM
Deep-Dive with AI
Search across all available documentation for this part.
M80-4172098
ActiveHarwin Inc.
CONN RCPT HSG 20POS 2.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-4172098 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Features | Polarizing Key, Mounting Flange, Mating Flange |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Note | Contacts Not Included |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Row Spacing | 2 mm |
| Row Spacing | 0.079 in |
M80-417 Series
| Part | Features | Contact Type | Fastening Type | Color | Insulation Material | Number of Positions | Contact Termination | Number of Rows | Pitch [x] | Pitch [x] | Connector Type | Note | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing | Row Spacing | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Mating Flange Mounting Flange Polarizing Key | Female Socket | Push-Pull | Black | Polyphenylene Sulfide (PPS) Glass Filled | 20 | Crimp | 2 | 0.079 in | 2 mm | Receptacle | Contacts Not Included | -55 °C | 125 °C | 2 mm | 0.079 in | |
Harwin Inc. | Mating Flange Mounting Flange Polarizing Key | Female Socket | Push-Pull | Black | Polyphenylene Sulfide (PPS) Glass Filled | 8 | Crimp | 2 | 0.079 in | 2 mm | Receptacle | Contacts Not Included | -55 °C | 125 °C | 2 mm | 0.079 in | |
Harwin Inc. | Mating Flange Mounting Flange Polarizing Key | Female Socket | Push-Pull | Black | Polyphenylene Sulfide (PPS) Glass Filled | 26 | Crimp | 2 | 0.079 in | 2 mm | Receptacle | Contacts Not Included | -55 °C | 125 °C | 2 mm | 0.079 in | |
Harwin Inc. | Mating Flange Mounting Flange Polarizing Key | Female Socket | Push-Pull | Black | Polyphenylene Sulfide (PPS) Glass Filled | Crimp | 2 | 0.079 in | 2 mm | Receptacle | Contacts Not Included | -55 °C | 125 °C | 2 mm | 0.079 in | ||
Harwin Inc. | Mating Flange Mounting Flange Polarizing Key | Female Socket | Push-Pull | Black | Polyphenylene Sulfide (PPS) Glass Filled | 30 | Crimp | 2 | 0.079 in | 2 mm | Receptacle | Contacts Not Included | -55 °C | 125 °C | 2 mm | 0.079 in | |
Harwin Inc. | Mating Flange Mounting Flange Polarizing Key | Female Socket | Push-Pull | Black | Polyphenylene Sulfide (PPS) Glass Filled | 48 | Crimp | 2 | 0.079 in | 2 mm | Receptacle | Contacts Not Included | -55 °C | 125 °C | 2 mm | 0.079 in | |
Harwin Inc. | Mating Flange Mounting Flange Polarizing Key | Female Socket | Push-Pull | Black | Polyphenylene Sulfide (PPS) Glass Filled | 18 | Crimp | 2 | 0.079 in | 2 mm | Receptacle | Contacts Not Included | -55 °C | 125 °C | 2 mm | 0.079 in | |
Harwin Inc. | Mating Flange Mounting Flange Polarizing Key | Female Socket | Push-Pull | Black | Polyphenylene Sulfide (PPS) Glass Filled | 6 | Crimp | 2 | 0.079 in | 2 mm | Receptacle | Contacts Not Included | -55 °C | 125 °C | 2 mm | 0.079 in | |
Harwin Inc. | Mating Flange Mounting Flange Polarizing Key | Female Socket | Push-Pull | Black | Polyphenylene Sulfide (PPS) Glass Filled | Crimp | 2 | 0.079 in | 2 mm | Receptacle | Contacts Not Included | -55 °C | 125 °C | 2 mm | 0.079 in | 16 | |
Harwin Inc. | Mating Flange Mounting Flange Polarizing Key | Female Socket | Push-Pull | Black | Polyphenylene Sulfide (PPS) Glass Filled | 4 | Crimp | 2 | 0.079 in | 2 mm | Receptacle | Contacts Not Included | -55 °C | 125 °C | 2 mm | 0.079 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 141 | $ 3.36 | |
Description
General part information
M80-417 Series
20 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
