Q-2M013000R.75M

Active

Amphenol Custom Cable

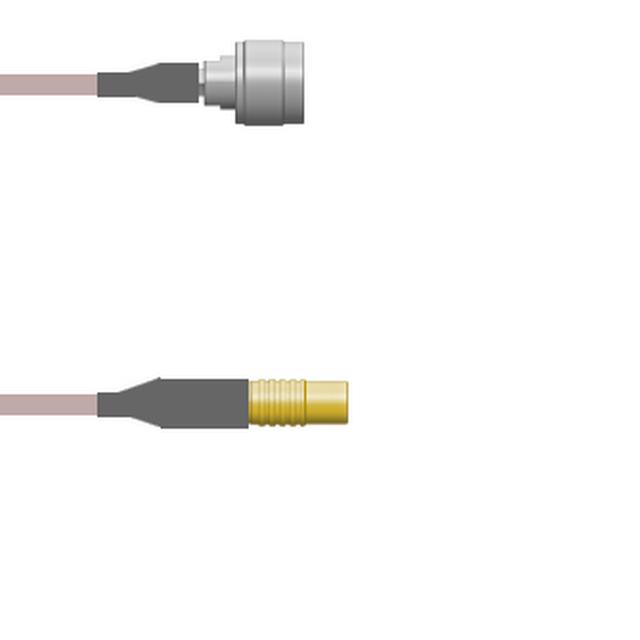

CBL ASSY MCX-NTYPE JCK-PL 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2M013000R.75M

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE JCK-PL 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2M013000R.75M

1st Connector	MCX Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-2M0130 Series

Part	1st Connector Mounting Type	Length	Length	Length	Cable Type	Style	1st Connector	Color	Features	2nd Contact Gender	Frequency - Max [Max]	Overall Impedance	2nd Connector Mounting Type	2nd Connector	1st Contact Gender	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2M013000R108i	Free Hanging (In-Line)	2.7 m	9 ft	108 in	RG-316 DB	MCX to N-Type	MCX Jack	Copper	Shielded	Male	6000 MHz	50 Ohms	Free Hanging (In-Line)	N-Type Plug	Female
Amphenol Custom Cable Q-2M013000R018i	Free Hanging (In-Line)				RG-316 DB	MCX to N-Type	MCX Jack	Copper	Shielded	Male	6000 MHz	50 Ohms	Free Hanging (In-Line)	N-Type Plug	Female	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2M013000R012i	Free Hanging (In-Line)	304.8 mm		12 "	RG-316 DB	MCX to N-Type	MCX Jack	Copper	Shielded	Male	6000 MHz	50 Ohms	Free Hanging (In-Line)	N-Type Plug	Female
Amphenol Custom Cable Q-2M013000R072i	Free Hanging (In-Line)	1.8 m	6 ft	72 in	RG-316 DB	MCX to N-Type	MCX Jack	Copper	Shielded	Male	6000 MHz	50 Ohms	Free Hanging (In-Line)	N-Type Plug	Female
Amphenol Custom Cable Q-2M013000R009i	Free Hanging (In-Line)	228.6 mm		9 "	RG-316 DB	MCX to N-Type	MCX Jack	Copper	Shielded	Male	6000 MHz	50 Ohms	Free Hanging (In-Line)	N-Type Plug	Female
Amphenol Custom Cable Q-2M013000R0.5M	Free Hanging (In-Line)	50 cm		19.69 "	RG-316 DB	MCX to N-Type	MCX Jack	Copper	Shielded	Male	6000 MHz	50 Ohms	Free Hanging (In-Line)	N-Type Plug	Female
Amphenol Custom Cable Q-2M013000R.25M	Free Hanging (In-Line)				RG-316 DB	MCX to N-Type	MCX Jack	Copper	Shielded	Male	6000 MHz	50 Ohms	Free Hanging (In-Line)	N-Type Plug	Female		250 mm	9.843 "
Amphenol Custom Cable Q-2M013000R001M	Free Hanging (In-Line)	1 m	3.3 ft	39.4 in	RG-316 DB	MCX to N-Type	MCX Jack	Copper	Shielded	Male	6000 MHz	50 Ohms	Free Hanging (In-Line)	N-Type Plug	Female
Amphenol Custom Cable Q-2M013000R003M	Free Hanging (In-Line)	3 m	9.8 '	118.1 in	RG-316 DB	MCX to N-Type	MCX Jack	Copper	Shielded	Male	6000 MHz	50 Ohms	Free Hanging (In-Line)	N-Type Plug	Female
Amphenol Custom Cable Q-2M013000R.75M	Free Hanging (In-Line)	750 mm		29.53 "	RG-316 DB	MCX to N-Type	MCX Jack	Copper	Shielded	Male	6000 MHz	50 Ohms	Free Hanging (In-Line)	N-Type Plug	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 149.71
		25	$ 146.79
		50	$ 143.87
		100	$ 140.94
		250	$ 138.02

Description

General part information

Q-2M0130 Series

Cable Assembly Coaxial MCX to N-Type RG-316 DB 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
