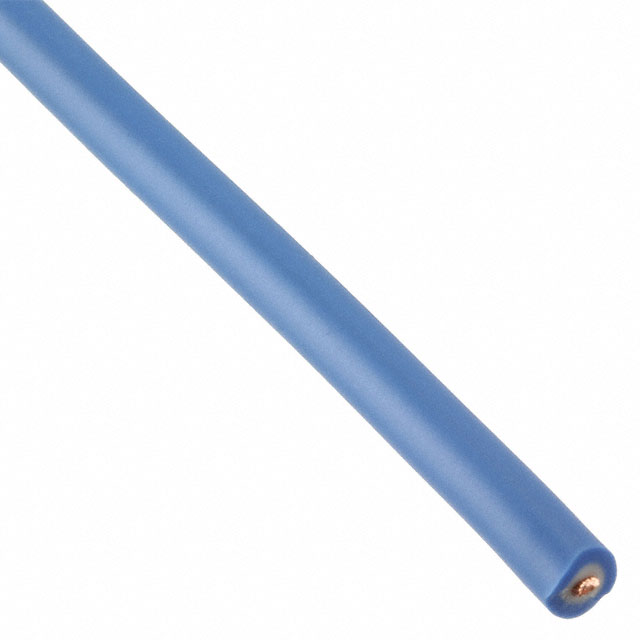

CT2885-6-50

Active

Cal Test Electronics

TEST LEAD 15AWG 1000V BLUE

Search across all available documentation for this part.

Active

Cal Test Electronics

TEST LEAD 15AWG 1000V BLUE

Technical Specifications

Parameters and characteristics for this part

Specification	CT2885-6-50

Conductor Material	Copper, Bare
Conductor Strand [custom]	392
Conductor Strand [diameter]	0.0028 in
Jacket (Insulation) Diameter [diameter]	3.81 mm
Jacket (Insulation) Diameter [diameter]	0.15 in
Jacket Color	Blue
Length	164 ft
Length	50 m
Operating Temperature [Max]	180 °C
Operating Temperature [Min]	-60 °C
Voltage	1000 V
Wire Gauge	15 AWG

Part	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Length	Length	Conductor Strand [diameter]	Conductor Strand [custom]	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color
Cal Test Electronics CT2885-9-100	Copper Bare	3.81 mm	0.15 in	15 AWG	100 m	328.1 ft	0.0028 in	392	1000 V	180 °C	-60 °C
Cal Test Electronics CT2885-4-10	Copper Bare	3.81 mm	0.15 in	15 AWG	10 m	32.81 ft	0.0028 in	392	1000 V	180 °C	-60 °C	Yellow
Cal Test Electronics CT2885-5-10	Copper Bare	3.81 mm	0.15 in	15 AWG	10 m	32.81 ft	0.0028 in	392	1000 V	180 °C	-60 °C	Green
Cal Test Electronics CT2885-0-50	Copper Bare	3.81 mm	0.15 in	15 AWG	50 m	164 ft	0.0028 in	392	1000 V	180 °C	-60 °C	Black
Cal Test Electronics CT2885-5-50	Copper Bare	3.81 mm	0.15 in	15 AWG	50 m	164 ft	0.0028 in	392	1000 V	180 °C	-60 °C	Green
Cal Test Electronics CT2885-5-100	Copper Bare	3.81 mm	0.15 in	15 AWG	100 m	328.1 ft	0.0028 in	392	1000 V	180 °C	-60 °C	Green
Cal Test Electronics CT2885-2-50	Copper Bare	3.81 mm	0.15 in	15 AWG	50 m	164 ft	0.0028 in	392	1000 V	180 °C	-60 °C	Red
Cal Test Electronics CT2885-2-100	Copper Bare	3.81 mm	0.15 in	15 AWG	100 m	328.1 ft	0.0028 in	392	1000 V	180 °C	-60 °C	Red
Cal Test Electronics CT2885-6-50	Copper Bare	3.81 mm	0.15 in	15 AWG	50 m	164 ft	0.0028 in	392	1000 V	180 °C	-60 °C	Blue
Cal Test Electronics CT2885-0-100	Copper Bare	3.81 mm	0.15 in	15 AWG	100 m	328.1 ft	0.0028 in	392	1000 V	180 °C	-60 °C	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	50	$ 6.60

General part information

15 AWG Test Lead Wire 392/0.0028" Blue 1000V 164.0' (50.0m)

Technical documentation and resources

No documents available
