XPEROY-L1-0000-00A02

Obsolete

Cree LED

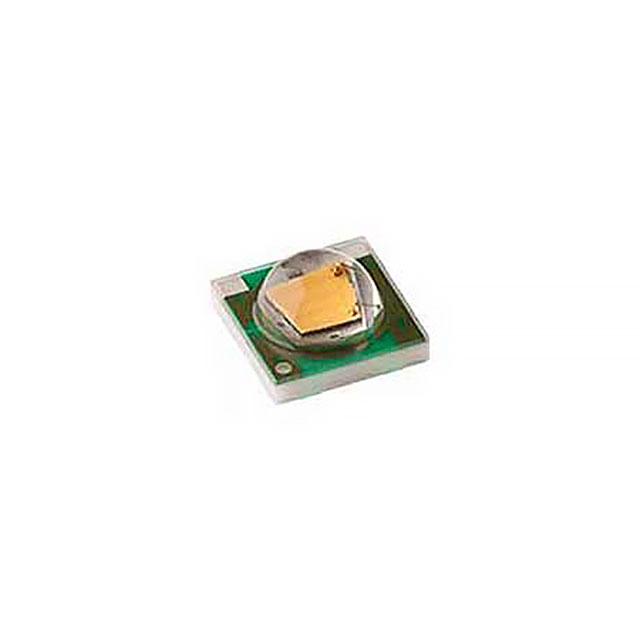

LED XLAMP XPE BLUE 455NM SMD

Search across all available documentation for this part.

Obsolete

Cree LED

LED XLAMP XPE BLUE 455NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	XPEROY-L1-0000-00A02

Color	Blue
Current - Max [Max]	1 A
Current - Test	350 mA
Luminous Flux @ Current/Temperature	463 mW
Luminous Flux @ Current/Temperature [Max]	475 mW
Luminous Flux @ Current/Temperature [Min]	450 mW
Mounting Type	Surface Mount
Package / Case	3535 Metric
Package / Case	1414
Size / Dimension [x]	3.45 mm
Size / Dimension [x]	0.136 in
Size / Dimension [y]	0.136 in
Size / Dimension [y]	3.45 mm
Supplier Device Package	SMD
Thermal Resistance of Package [diameter]	9 °C/W
Viewing Angle	130 °
Voltage - Forward (Vf) (Typ)	3.1 V
Wavelength	455 nm

Part	Mounting Type	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Thermal Resistance of Package [diameter]	Current - Test	Wavelength	Viewing Angle	Current - Max [Max]
Cree LED XPEROY-L1-0000-00A02	Surface Mount	463 mW	475 mW	450 mW	Blue	3.45 mm	0.136 in	0.136 in	3.45 mm	SMD	3.1 V	3535 Metric	1414	9 °C/W	350 mA	455 nm	130 °	1 A
Cree LED XPEROY-L1-R250-00902	Surface Mount	388 mW	425 mW	350 mW	Blue	3.45 mm	0.136 in	0.136 in	3.45 mm	SMD	3.1 V	3535 Metric	1414	9 °C/W	350 mA	455 nm	130 °	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color XLamp® XP-E Blue 455nm (450nm ~ 460nm) 1414 (3535 Metric)
