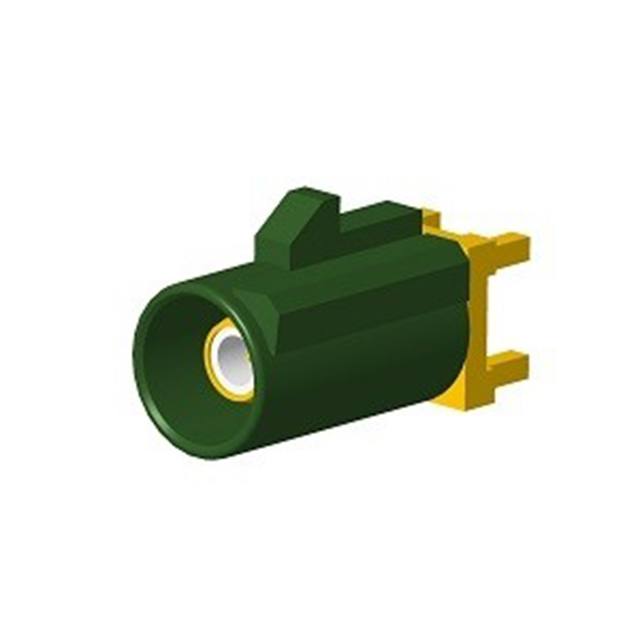

FA1-NESP-PCBD6

Active

Amphenol RF

RF / COAXIAL CONNECTOR, FAKRA COAXIAL, STRAIGHT PLUG, THROUGH HOLE VERTICAL, 50 OHM, BRASS

Search across all available documentation for this part.

Active

Amphenol RF

RF / COAXIAL CONNECTOR, FAKRA COAXIAL, STRAIGHT PLUG, THROUGH HOLE VERTICAL, 50 OHM, BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	FA1-NESP-PCBD6

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp
Features	Code E
Frequency - Max [Max]	6000 MHz
Housing Color	Green, Leaf
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

Part	Housing Color	Shield Termination	Features	Contact Termination	Body Finish	Frequency - Max [Max]	Impedance	Mounting Type	Connector Type	Center Contact Plating	Dielectric Material	Body Material	Fastening Type	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Connector Style
Amphenol RF FA1-NESP-PCBD6	Green Leaf	Solder	Code E	Solder	Gold	6000 MHz	50 Ohms	Through Hole	Male Pin Plug	Gold	Polytetrafluoroethylene (PTFE)	Brass	Locking Ramp	1	100 °C	-40 °C	Brass	Fakra SMB
Amphenol RF FA1-NESP-PCB-2	Green Leaf	Solder	Code E	Solder	Gold	4 GHz	50 Ohms	Through Hole	Male Pin Plug	Gold	Polytetrafluoroethylene (PTFE)	Brass	Locking Ramp	1	85 °C	-40 °C	Brass	Fakra SMB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole Solder
