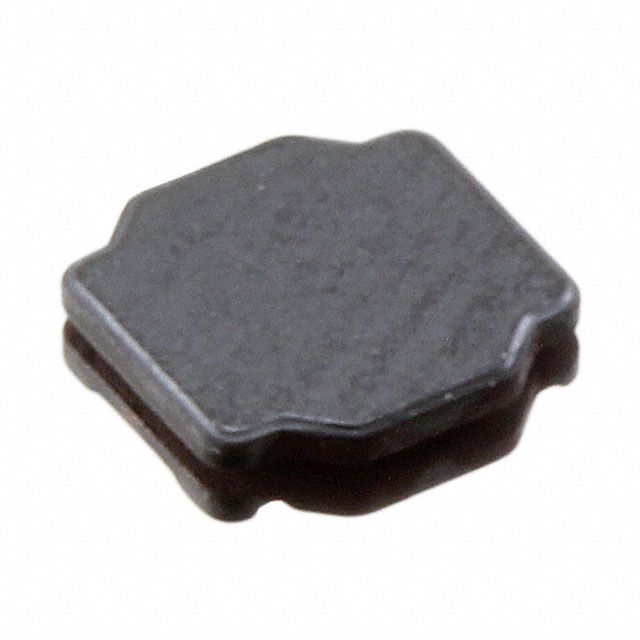

LQH44PZ150MGRL

Obsolete

Murata Power Solutions Inc.

FIXED IND

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

FIXED IND

Technical Specifications

Parameters and characteristics for this part

Specification	LQH44PZ150MGRL

null

Part	Shielding	Current Rating (Amps)	DC Resistance (DCR)	Inductance Frequency - Test	Current - Saturation (Isat)	Frequency - Self Resonant	Type	Package / Case	Tolerance	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Material - Core	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Operating Temperature [Min]	Operating Temperature [Max]
Murata Power Solutions Inc. LQH44PZ4R7MGRL	Shielded	1.6 A	130 mOhm	1 MHz	1.2 A	17 MHz	Drum Core Wirewound	1616 (4040 Metric)	20 %	AEC-Q200	0.157 in	4 mm	4 mm	0.157 "	Surface Mount	Ferrite	0.039 "	1 mm	4.7 ÁH	-40 °C	105 ░C
Murata Power Solutions Inc. LQH44PZ150MGRL
Murata Power Solutions Inc. LQH44PZ220MGRL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Inductor

Technical documentation and resources

No documents available
