M091YC2AE

Active

Nuvoton Technology Corporation

M0-32K AP+8K RAM+4XDAC, WITH NOP

Search across all available documentation for this part.

Active

Nuvoton Technology Corporation

M0-32K AP+8K RAM+4XDAC, WITH NOP

Technical Specifications

Parameters and characteristics for this part

Specification	M091YC2AE

Connectivity	IrDA, UART/USART, I2C, SPI
Core Processor	ARM® Cortex®-M0
Core Size	32-Bit
Data Converters [custom]	16x12b SAR
Data Converters [custom]	4x12b
Mounting Type	Surface Mount
Number of I/O	29
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

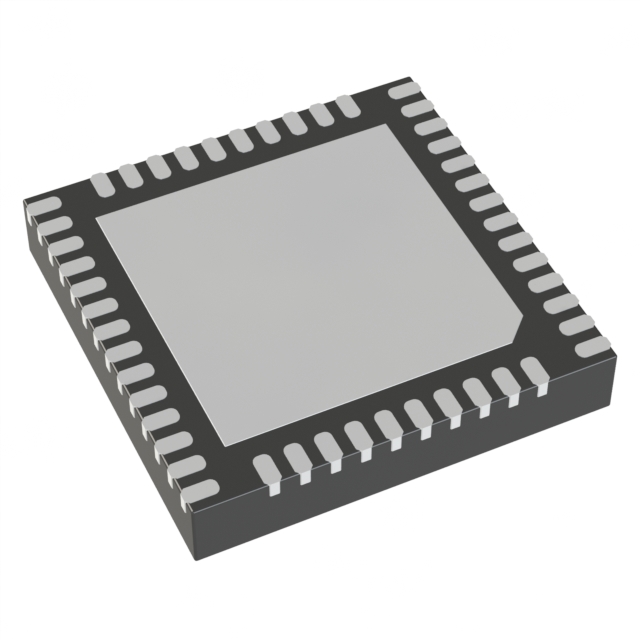

Package / Case	48-VFQFN Exposed Pad
Peripherals	POR, WDT, I2S, PWM, Brown-out Detect/Reset, DMA, LVR
Program Memory Size	32 KB
Program Memory Type	FLASH
RAM Size	8 K
Speed	72 MHz
Supplier Device Package	48-QFN (5x5)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	2.7 V

Part	Core Size	Operating Temperature [Max]	Operating Temperature [Min]	Speed	Data Converters	Supplier Device Package	Program Memory Type	Connectivity	Oscillator Type	Mounting Type	Peripherals	Core Processor	Program Memory Size	RAM Size	Number of I/O	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Package / Case	Data Converters [custom]	Data Converters [custom]
Nuvoton Technology Corporation M091TD2AE	32-Bit	105 °C	-40 °C	72 MHz	A/D 14x12b SAR D/A 4x12b	33-QFN (4x4)	FLASH	I2C IrDA SPI UART/USART	Internal	Surface Mount	Brown-out Detect/Reset DMA I2S LVR POR PWM WDT	ARM® Cortex®-M0	64 KB	8 K	22	3.6 V	2.7 V
Nuvoton Technology Corporation M091TC2AE	32-Bit	105 °C	-40 °C	72 MHz	A/D 14x12b SAR D/A 4x12b	33-QFN (4x4)	FLASH	I2C IrDA SPI UART/USART	Internal	Surface Mount	Brown-out Detect/Reset DMA I2S LVR POR PWM WDT	ARM® Cortex®-M0	32 KB	8 K	22	3.6 V	2.7 V
Nuvoton Technology Corporation M091YC2AE	32-Bit	105 °C	-40 °C	72 MHz		48-QFN (5x5)	FLASH	I2C IrDA SPI UART/USART	Internal	Surface Mount	Brown-out Detect/Reset DMA I2S LVR POR PWM WDT	ARM® Cortex®-M0	32 KB	8 K	29	3.6 V	2.7 V	48-VFQFN Exposed Pad	16x12b SAR	4x12b

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	490	$ 2.20

General part information

ARM® Cortex®-M0 NuMicro™ M091 Microcontroller IC 32-Bit 72MHz 32KB (32K x 8) FLASH 48-QFN (5x5)
