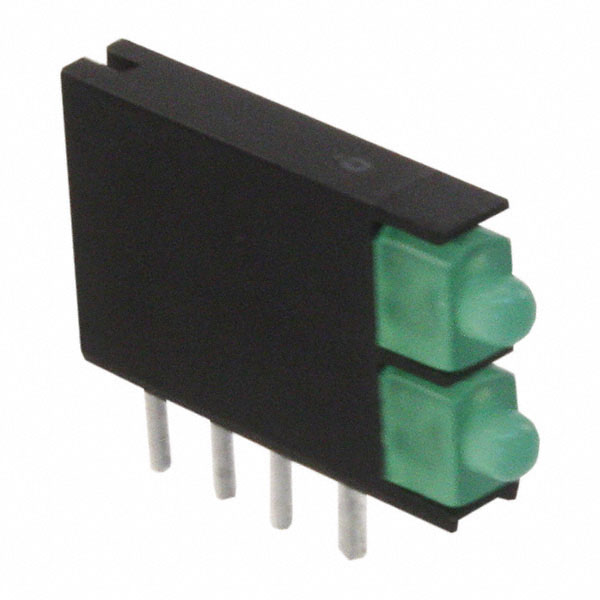

WP4060VH/2GD

Active

Kingbright

LED CBI 1.8MM BI-LVL GRN RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP4060VH/2GD

Active

Kingbright

LED CBI 1.8MM BI-LVL GRN RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP4060VH/2GD

Color	Green (x 2)
Configuration	2 High
Lens Size [diameter]	1.8 mm
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	9 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	70 °
Wavelength - Peak	568 nm

WP4060 Series

Part	Height (Max) [Max]	Wavelength - Peak	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Configuration	Color	Lens Size [diameter]	Lens Transparency	Viewing Angle	Voltage - Forward (Vf) (Typ)	Mounting Type	Current - Test	Lens Color	Millicandela Rating	Package / Case	Lens Style	Wavelength - Dominant	Lens Type	Current	Voltage Rating
Kingbright WP4060ID	4.1 mm	627 nm	3.3 mm	2.4 mm	Radial Lead	Standard	Red	1.8 mm	Diffused	70 °	2 V	Through Hole	20 mA	Red	8 mcd	Radial	Round with Domed Top	617 nm
Kingbright WP4060SRD	4.1 mm	655 nm	3.3 mm	2.4 mm	Radial Lead	Standard	Red	1.8 mm	Diffused	70 °	1.85 V	Through Hole	20 mA	Red	80 mcd	Radial	Round with Domed Top	640 nm
Kingbright WP4060VH/IGD		568 nm 617 nm				2 High	Green (x 1) Red (x 1)	1.8 mm		70 °		Through Hole Right Angle			8 mcd 12 mcd		Round with Domed Top		Diffused Tinted	25 mA 30 mA	1.9 V 2 V
Kingbright WP4060YD	4.1 mm	590 nm	3.3 mm	2.4 mm	Radial Lead	Standard	Yellow	1.8 mm	Diffused	70 °	2.1 V	Through Hole	20 mA	Yellow	8 mcd	Radial	Round with Domed Top	588 nm
Kingbright WP4060VH/GID		568 nm 617 nm				2 High	Green (x 1) Red (x 1)	1.8 mm		70 °		Through Hole Right Angle			8 mcd 12 mcd		Round with Domed Top		Diffused Tinted	25 mA 30 mA	1.9 V 2 V
Kingbright WP4060VH/2YD		588 nm				2 High	Yellow (x 2)	1.8 mm		70 °		Through Hole Right Angle			6 mcd		Round with Domed Top		Diffused Tinted		2.1 V
Kingbright WP4060VH/2GD		568 nm				2 High	Green (x 2)	1.8 mm		70 °		Through Hole Right Angle			9 mcd		Round with Domed Top		Diffused Tinted
Kingbright WP4060VH/2ID						2 High	Red	1.8 mm		70 °		Through Hole Right Angle			11.5 mcd		Round with Domed Top		Diffused Tinted		2 V
Kingbright WP4060GD	4.1 mm	565 nm	3.3 mm	2.4 mm	Radial Lead	Standard	Green	1.8 mm	Diffused	70 °	2.2 V	Through Hole	20 mA	Green	12 mcd	Radial	Round with Domed Top	568 nm
Kingbright WP4060ED	4.1 mm	627 nm	3.3 mm	2.4 mm	Radial Lead	Standard		1.8 mm	Diffused	70 °	2 V	Through Hole	20 mA	Orange	8 mcd	Radial	Round with Domed Top	617 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.00
		10	$ 1.28
		100	$ 0.92
		500	$ 0.78
		1000	$ 0.73
		2000	$ 0.70
		5000	$ 0.66
		10000	$ 0.63

Description

General part information

WP4060 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 2) Diffused, Tinted 2.2V 20mA Round with Domed Top 1.80mm Dia Through Hole, Right Angle
