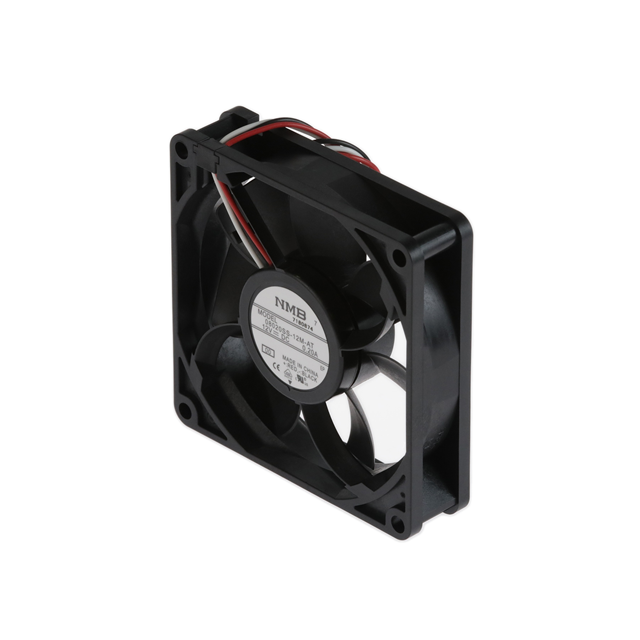

08020SS-12M-AT-00
ActiveNMB TECHNOLOGIES
DC FANS DC AXIAL FAN, 80X80X20MM, 12VDC, 39.9CFM, RIB MOUNT, SLEEVE, 3-LEAD WIRES, TACH
Deep-Dive with AI
Search across all available documentation for this part.
08020SS-12M-AT-00
ActiveNMB TECHNOLOGIES
DC FANS DC AXIAL FAN, 80X80X20MM, 12VDC, 39.9CFM, RIB MOUNT, SLEEVE, 3-LEAD WIRES, TACH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 08020SS-12M-AT-00 |
|---|---|
| Air Flow | 40 CFM |
| Air Flow | 1.12 mł/min |
| Bearing Type | Sleeve |
| Current Rating (Amps) | 150 mA |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Speed Sensor (Tach) |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 37.5 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 1.8 W |
| RPM | 3700 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 0.21 in H2O |
| Static Pressure | 52.3 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 6 VDC |
| Weight | 0.167 lb |
| Weight | 75.75 g |
| Width [y] | 20 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
08020SS Series
DC Fans DC Axial Fan, 80x80x20mm, 12VDC, 39.9CFM, Rib Mount, Sleeve, 3-Lead Wires, Tach
