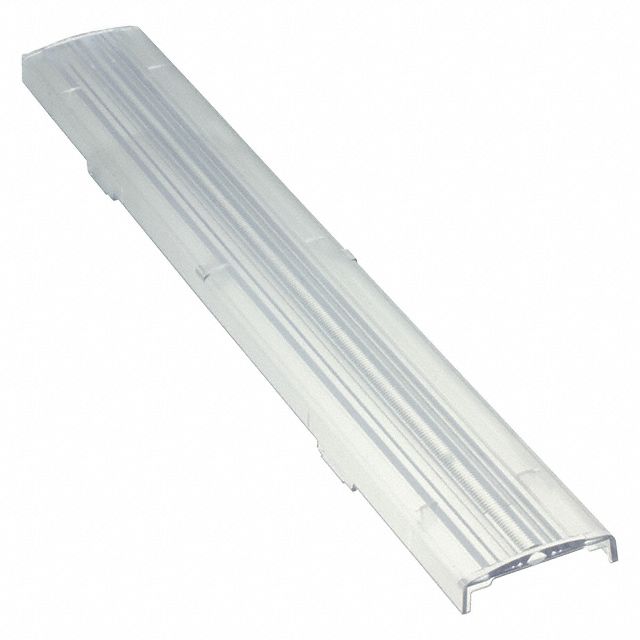

F16048_LINNEA-UP

Active

LEDiL

LENS RECTANG 22 POS MM (D) MM(H)/ CARTON BOARD ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

LEDiL

LENS RECTANG 22 POS MM (D) MM(H)/ CARTON BOARD ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	F16048_LINNEA-UP

Color	Clear
For Use With/Related Manufacturer	Tridonic, Osram, Comet, Samsung, Philips, Cree, Nichia
Lens Size [x]	285.1 mm
Lens Size [y]	40 mm
Lens Style	Rectangle with Flat Top
Material	Polycarbonate
Number of LEDs	1
Optical Pattern	Asymmetrical
Type	Lens

Part	Type	Number of LEDs	Lens Size [x]	Lens Size [y]	Optical Pattern	Lens Style	For Use With/Related Manufacturer	Color	Material
LEDiL F16048_LINNEA-UP	Lens	1	285.1 mm	40 mm	Asymmetrical	Rectangle with Flat Top	Comet Cree Nichia Osram Philips Samsung Tridonic	Clear	Polycarbonate

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lens Clear Asymmetrical
