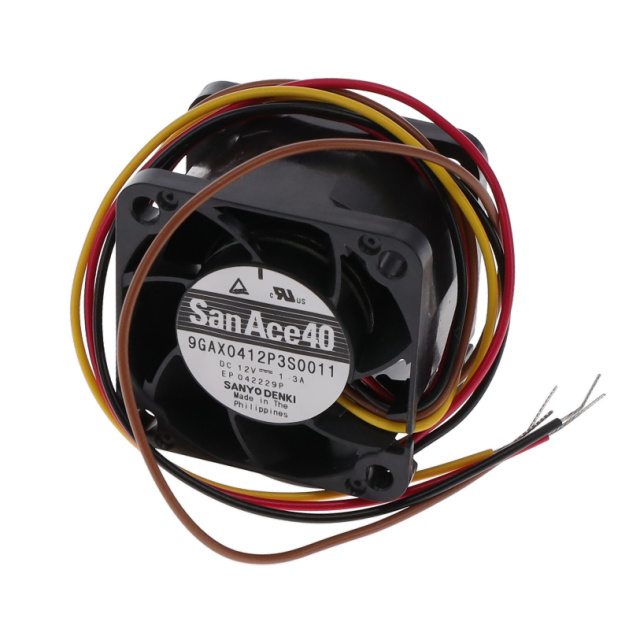

9GAX0412P3S0011

Active

Sanyo Denki America Inc.

FAN AXIAL 40X28MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 40X28MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9GAX0412P3S0011

Air Flow	31.8 CFM
Air Flow	0.89 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	1.3 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Material - Blade	Plastic
Material - Frame	Plastic
Noise	64 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	15.6 W
RPM	25000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	4.02 in H2O
Static Pressure	1001.3 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	12.6 VDC
Voltage Range [Min]	10.8 VDC
Weight	0.117 lb
Weight	53.07 g
Width [y]	28 mm

Part	RPM	Material - Blade	Static Pressure	Static Pressure	Width [y]	Bearing Type	Noise	Voltage - Rated	Voltage Range [Min]	Voltage Range [Max]	Power (Watts)	Approval Agency	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Termination	Air Flow	Air Flow	Material - Frame	Fan Type	Current Rating (Amps)	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Features
Sanyo Denki America Inc. 9GAX0412P3S001	25000 RPM	Plastic	1000.6 Pa	4.017 in H2O	28 mm	Ball	64 dB(A)	12 VDC	10.8 VDC	12.6 VDC	15.6 W	CSA TUV UL	40 mm	Square	40 mm	4 Wire Leads	31.8 CFM	0.89 m³/min	Plastic	Tubeaxial	1.3 A	0.117 lb	53.07 g	60 °C	-20 °C	-20 C	60 °C	PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GAX0412P3K003	22000 RPM	Plastic	800 Pa	3.21 in H2O	28 mm	Ball	61 dB(A)	12 VDC	10.8 VDC	13.2 VDC	11.04 W	CSA TUV UL	40 mm	Square	40 mm	4 Wire Leads	28.6 CFM	0.801 m³/min	Plastic	Tubeaxial	920 mA	0.117 lb	53.07 g	60 °C	-20 °C	-20 C	60 °C	PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GAX0412P3S0011	25000 RPM	Plastic	1001.3 Pa	4.02 in H2O	28 mm	Ball	64 dB(A)	12 VDC	10.8 VDC	12.6 VDC	15.6 W	CSA TUV UL	40 mm	Square	40 mm	4 Wire Leads	31.8 CFM	0.89 m³/min	Plastic	Tubeaxial	1.3 A	0.117 lb	53.07 g	60 °C	-20 °C	-20 C	60 °C	PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GAX0412P3K0031	22000 RPM	Plastic	800 Pa	3.21 in H2O	28 mm	Ball	61 dB(A)	12 VDC	10.8 VDC	13.2 VDC	11.04 W	CSA TUV UL	40 mm	Square	40 mm	4 Wire Leads	28.6 CFM	0.801 m³/min	Plastic	Tubeaxial	920 mA	0.117 lb	53.07 g	60 °C	-20 °C	-20 C	60 °C	PWM Control Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 31.8 CFM (0.890m³/min) 4 Wire Leads
