09302060301

Active

HARTING Technology Group

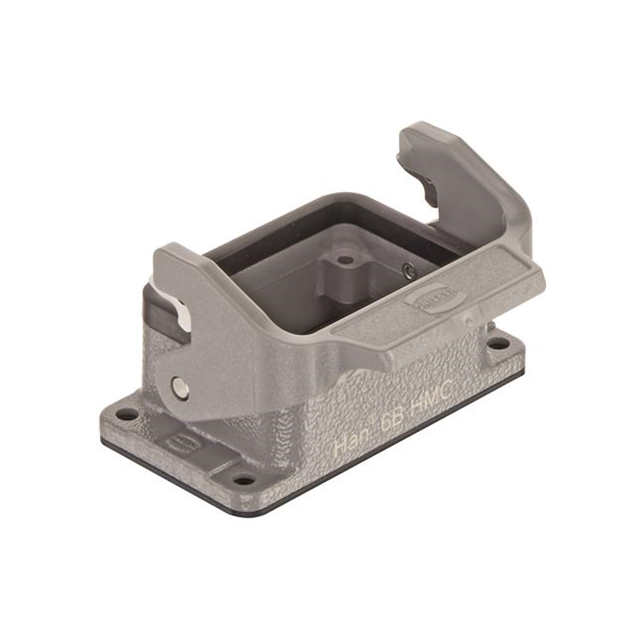

6B BULKHEAD HOUSING, SINGLE LEVER - HIGH MATING CYCLE VERSION

Search across all available documentation for this part.

Active

HARTING Technology Group

6B BULKHEAD HOUSING, SINGLE LEVER - HIGH MATING CYCLE VERSION

Technical Specifications

Parameters and characteristics for this part

Specification	09302060301

Connector Type	Base - Panel Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	3.15 in
Size / Dimension [x]	80 mm
Size / Dimension [y]	43.4 mm
Size / Dimension [y]	1.709 in
Size / Dimension [z]	1.138 "
Size / Dimension [z]	28.9 mm
Style	Bottom Entry

Part	Housing Material	Style	Lock Location	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Housing Finish	Connector Type	Size	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection
HARTING Technology Group 09302060301	Aluminum Die Cast	Bottom Entry	Locking Clip (1) on Base Bottom	43.4 mm	1.138 "	1.709 in	28.9 mm	3.15 in	80 mm	Powder Coated	Base - Panel Mount	6B	Gray	125 °C	-40 °C	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 6B IP65 - Dust Tight, Water Resistant
