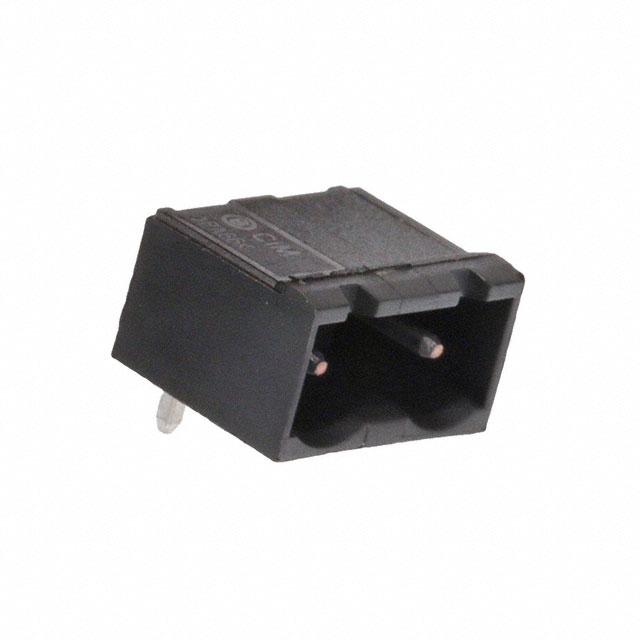

0393730002

Active

Molex

2 STRAIGHT NEEDLE 1 7.5MM BLACK PLUGIN PLUGGABLE SYSTEM TERMINAL BLOCK ROHS

Deep-Dive with AI

Search across all available documentation for this part.

0393730002

Active

Molex

2 STRAIGHT NEEDLE 1 7.5MM BLACK PLUGIN PLUGGABLE SYSTEM TERMINAL BLOCK ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0393730002

Color	Black
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Header Orientation	90°, Right Angle
Housing Material	Polyamide (PA), Nylon
Insulation Height	8.36 mm
Insulation Height	0.329 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	2
Operating Temperature	110 °C
Pitch [x]	0.295 in
Pitch [x]	7.5 mm
Positions Per Level	2
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

039373 Series

Part	Contact Mating Finish	Contact Tail Length	Contact Tail Length	Contact Material	Pitch [x]	Pitch [x]	Mounting Type	Positions Per Level	Header Orientation	Type	Color	Termination Style	Operating Temperature	Number of Positions	Housing Material	Material Flammability Rating	Insulation Height	Insulation Height	Voltage - UL	Number of Levels
Molex 0393730009	Tin	3.5 mm	0.138 in	Phosphor Bronze	0.295 in	7.5 mm	Through Hole	9	90° Right Angle	Header Male Pins Shrouded (4 Side)	Black	Solder	110 °C	9	Polyamide (PA) Nylon	UL94 V-0	8.36 mm	0.329 in	300 V	1
Molex 0393730008	Tin	3.5 mm	0.138 in	Phosphor Bronze	0.295 in	7.5 mm	Through Hole	8	90° Right Angle	Header Male Pins Shrouded (4 Side)	Black	Solder	110 °C	8	Polyamide (PA) Nylon	UL94 V-0	8.36 mm	0.329 in	300 V	1
Molex 0393730003	Tin	3.5 mm	0.138 in	Phosphor Bronze	0.295 in	7.5 mm	Through Hole	3	90° Right Angle	Header Male Pins Shrouded (4 Side)	Black	Solder	110 °C		Polyamide (PA) Nylon	UL94 V-0	8.36 mm	0.329 in	300 V	1
Molex 0393730004	Tin	3.5 mm	0.138 in	Phosphor Bronze	0.295 in	7.5 mm	Through Hole	4	90° Right Angle	Header Male Pins Shrouded (4 Side)	Black	Solder	110 °C	4	Polyamide (PA) Nylon	UL94 V-0	8.36 mm	0.329 in	300 V	1
Molex 0393730007	Tin	3.5 mm	0.138 in	Phosphor Bronze	0.295 in	7.5 mm	Through Hole	7	90° Right Angle	Header Male Pins Shrouded (4 Side)	Black	Solder	110 °C	7	Polyamide (PA) Nylon	UL94 V-0	8.36 mm	0.329 in	300 V	1
Molex 0393730012	Tin	3.5 mm	0.138 in	Phosphor Bronze	0.295 in	7.5 mm	Through Hole	12	90° Right Angle	Header Male Pins Shrouded (4 Side)	Black	Solder	110 °C	12	Polyamide (PA) Nylon	UL94 V-0	8.36 mm	0.329 in	300 V	1
Molex 0393730002	Tin	3.5 mm	0.138 in	Phosphor Bronze	0.295 in	7.5 mm	Through Hole	2	90° Right Angle	Header Male Pins Shrouded (4 Side)	Black	Solder	110 °C	2	Polyamide (PA) Nylon	UL94 V-0	8.36 mm	0.329 in	300 V	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.89
		10	$ 0.66
		25	$ 0.57
		50	$ 0.52
		100	$ 0.47
		400	$ 0.39
		800	$ 0.33
		1200	$ 0.35
		5200	$ 0.31
LCSC	Piece	1	$ 0.26
		200	$ 0.10
		400	$ 0.10
		800	$ 0.10

Description

General part information

039373 Series

2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.295" (7.50mm) 90°, Right Angle Through Hole

Documents

Technical documentation and resources

No documents available
