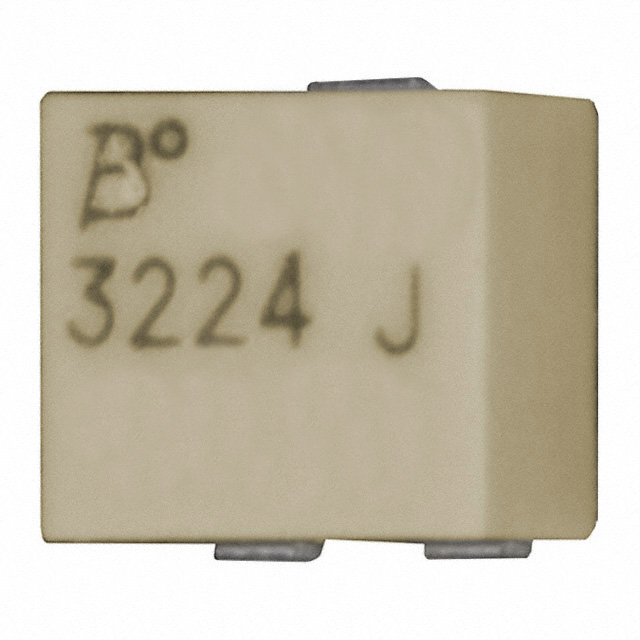

3224J-1-100E

Active

Bourns Inc.

RES CERMET TRIMMER 10 OHM 10% 0.25W(1/4W) 12(ELEC)TURNS 1.5MM (4.8 X 5 X 3.71MM) J-HOOK SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3224J-1-100E

Active

Bourns Inc.

RES CERMET TRIMMER 10 OHM 10% 0.25W(1/4W) 12(ELEC)TURNS 1.5MM (4.8 X 5 X 3.71MM) J-HOOK SMD T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3224J-1-100E

Adjustment Type	Side Adjustment
Mounting Type	Surface Mount
Number of Turns	12
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	10 Ohms
Resistive Material	Cermet
Size / Dimension [x]	0.181 "
Size / Dimension [x]	4.6 mm
Size / Dimension [y]	0.138 in
Size / Dimension [y]	3.5 mm
Temperature Coefficient	100 ppm/°C
Termination Style	J Lead
Tolerance	10 %

3224J Series

Part	Resistive Material	Number of Turns	Tolerance	Mounting Type	Power (Watts)	Power (Watts)	Temperature Coefficient	Adjustment Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Termination Style	Resistance
Bourns Inc. 3224J-1-504E	Cermet	12	10 %	Surface Mount	0.25 W	250 mW	100 ppm/°C	Side Adjustment	0.181 "	0.138 in	3.5 mm	4.6 mm	J Lead
Bourns Inc. 3224J-1-253E	Cermet	12	10 %	Surface Mount	0.25 W	250 mW	100 ppm/°C	Side Adjustment	0.181 "	0.138 in	3.5 mm	4.6 mm	J Lead	25 kOhms
Bourns Inc. 3224J-2-503E	Cermet	12	10 %	Surface Mount	0.25 W	250 mW	100 ppm/°C	Side Adjustment	0.181 "	0.138 in	3.5 mm	4.6 mm	J Lead	50 kOhms
Bourns Inc. 3224J-1-104G	Cermet	12	10 %	Surface Mount	0.25 W	250 mW	100 ppm/°C	Side Adjustment	0.181 "	0.138 in	3.5 mm	4.6 mm	J Lead	100 kOhms
Bourns Inc. 3224J-1-503E	Cermet	12	10 %	Surface Mount	0.25 W	250 mW	100 ppm/°C	Side Adjustment	0.181 "	0.138 in	3.5 mm	4.6 mm	J Lead	50 kOhms
Bourns Inc. 3224J-1-503G	Cermet	12	10 %	Surface Mount	0.25 W	250 mW	100 ppm/°C	Side Adjustment	0.181 "	0.138 in	3.5 mm	4.6 mm	J Lead	50 kOhms
Bourns Inc. 3224J-2-103E	Cermet	12	10 %	Surface Mount	0.25 W	250 mW	100 ppm/°C	Side Adjustment	0.181 "	0.138 in	3.5 mm	4.6 mm	J Lead	10000 Ohms
Bourns Inc. 3224J-1-200E	Cermet	12	10 %	Surface Mount	0.25 W	250 mW	100 ppm/°C	Side Adjustment	0.181 "	0.138 in	3.5 mm	4.6 mm	J Lead	20 Ohms
Bourns Inc. 3224J-1-500E	Cermet	12	10 %	Surface Mount	0.25 W	250 mW	100 ppm/°C	Side Adjustment	0.181 "	0.138 in	3.5 mm	4.6 mm	J Lead	50 Ohms
Bourns Inc. 3224J-1-100E	Cermet	12	10 %	Surface Mount	0.25 W	250 mW	100 ppm/°C	Side Adjustment	0.181 "	0.138 in	3.5 mm	4.6 mm	J Lead	10 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.82
		10	$ 4.21
		25	$ 3.76
		50	$ 3.54
		100	$ 3.46
		250	$ 3.31
	Digi-Reel®	1	$ 4.82
		10	$ 4.21
		25	$ 3.76
		50	$ 3.54
		100	$ 3.46
		250	$ 3.31
	Tape & Reel (TR)	500	$ 2.71
		1000	$ 2.33
		2500	$ 2.18
LCSC	Piece	1	$ 4.65
		200	$ 1.86
		500	$ 1.79
		1000	$ 1.76

Description

General part information

3224J Series

10 Ohms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 12.0 Turn Side Adjustment
