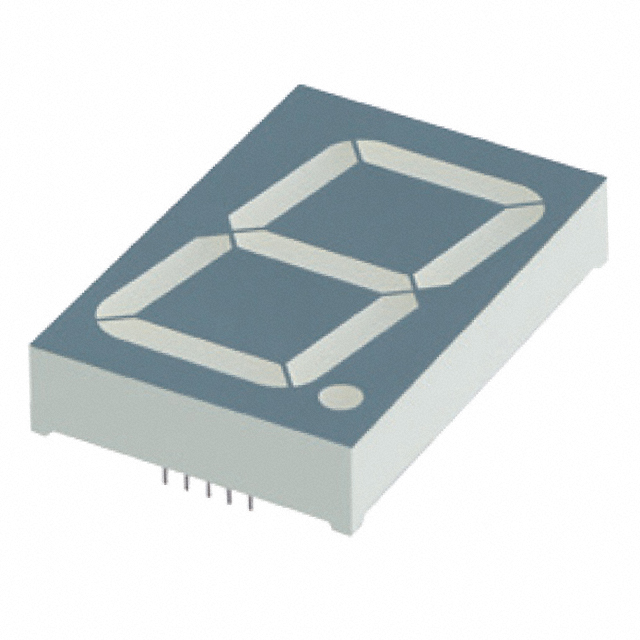

DUR46A
ActiveSunLED
1.8" RED DISPLAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DUR46A
ActiveSunLED
1.8" RED DISPLAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DUR46A |
|---|---|
| Color | Red |
| Digit/Alpha Size | 44.5 mm |
| Digit/Alpha Size | 1.75 in |
| Number of Characters [custom] | 1 |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension [x] | 2.205 in |
| Size / Dimension [x] | 56 mm |
| Size / Dimension [y] | 38 mm |
| Size / Dimension [y] | 1.496 " |
| Size / Dimension [z] | 11 mm |
| Size / Dimension [z] | 0.433 in |
| Wavelength - Peak | 627 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 26 | $ 3.60 | |
| 130 | $ 3.42 | |||
| 260 | $ 3.21 | |||
Description
General part information
DUR46 Series
Display Modules - LED Character and Numeric Red 1 Character 2.205" H x 1.496" W x 0.433" D (56.00mm x 38.00mm x 11.00mm)
