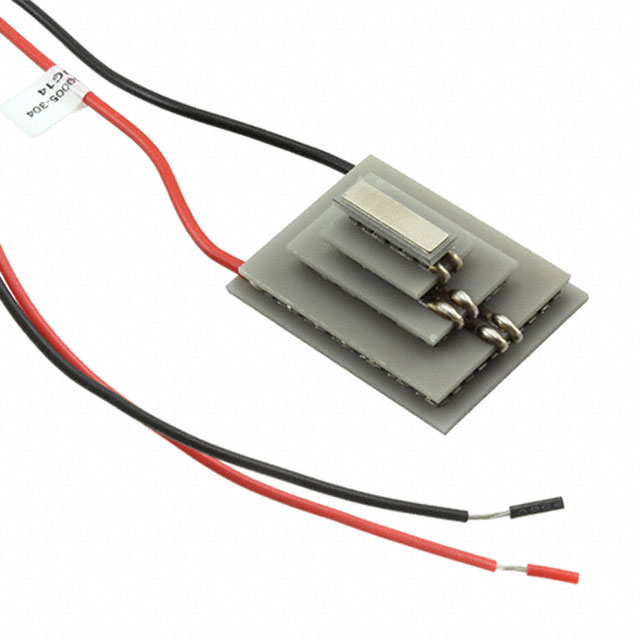

9350005-304
ActiveLaird Thermal Systems, Inc.
PELTIER MS4,115,14,15,00,W8
Deep-Dive with AI
Search across all available documentation for this part.
9350005-304
ActiveLaird Thermal Systems, Inc.
PELTIER MS4,115,14,15,00,W8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9350005-304 |
|---|---|
| Current - Max [Max] | 3.5 A |
| Delta Tmax @ Th | 122 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 14 mm |
| Number of Stages | 4 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 2.7 W |
| Size / Dimension [x] | 33 mm |
| Size / Dimension [y] | 24 mm |
| Voltage - Max [Max] | 7.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
9350005 Series
Peltier Module 2.7W @ 25°C 3.5 A 80°C
Documents
Technical documentation and resources
