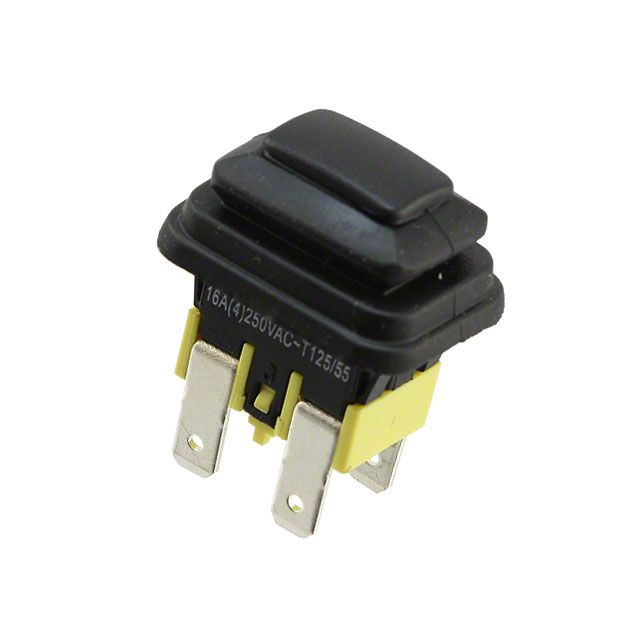

PA4R12C1100

Active

E-Switch

SWITCH PUSHBUTTON DPST 16A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSHBUTTON DPST 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	PA4R12C1100

Actuator Marking	No Marking
Actuator Type	Button, Rectangular, Rubber Cap
Circuit	DPST
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A
Electrical Life	10000 Cycles
Ingress Protection	Water Resistant
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	19 mm
Panel Cutout Dimensions [y]	13 mm
Switch Function	Off-On
Termination Style	Quick Connect - 0.187" (4.7mm)
Type	Standard
Voltage Rating - AC	125 V

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Actuator Marking	Switch Function	Illumination Voltage (Nominal)	Actuator Type	Current Rating (Amps)	Electrical Life	Circuit	Type	Color - Actuator/Cap	Illumination Type, Color	Voltage Rating - AC	Termination Style	Mounting Type
E-Switch PA4R12C2000-136	19 mm	13 mm	Water Resistant	No Marking	Off-On	125 VAC	Button Rectangular Rubber Cap	16 A	10000 Cycles	DPST	Illuminated Standard	Green	Green Neon	125 V	Quick Connect - 0.187" (4.7mm)	Panel Mount Snap-In
E-Switch PA4R12C1100	19 mm	13 mm	Water Resistant	No Marking	Off-On		Button Rectangular Rubber Cap	16 A	10000 Cycles	DPST	Standard	Black		125 V	Quick Connect - 0.187" (4.7mm)	Panel Mount Snap-In
E-Switch PA4R12C1000-127	19 mm	13 mm	Water Resistant	No Marking	Off-On	250 VAC	Button Rectangular Rubber Cap	16 A	10000 Cycles	DPST	Illuminated Standard	Amber	Amber Neon	125 V	Quick Connect - 0.187" (4.7mm)	Panel Mount Snap-In
E-Switch PA4R14C1000-114	19 mm	13 mm	Water Resistant	No Marking	Off-Mom	12 VAC/DC	Button Rectangular Rubber Cap	16 A	10000 Cycles	SPST-NO	Illuminated Standard	Red	Incandescent Red	125 V	Quick Connect - 0.187" (4.7mm)	Panel Mount Snap-In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 2.21

General part information

Pushbutton Switch DPST Standard Panel Mount, Snap-In
