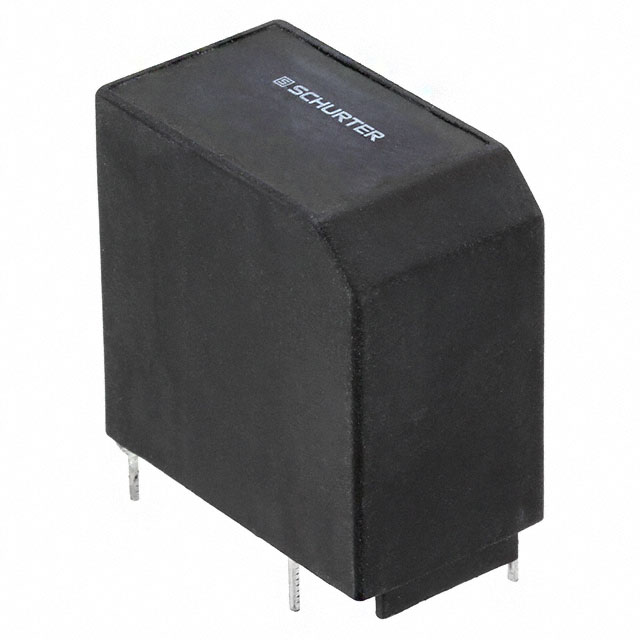

DLH-31-0001
ActiveSCHURTER Inc.
FIXED IND 5.5MH 600MA 3.6 OHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DLH-31-0001
ActiveSCHURTER Inc.
FIXED IND 5.5MH 600MA 3.6 OHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DLH-31-0001 |
|---|---|
| Current Rating (Amps) | 600 mA |
| DC Resistance (DCR) | 3.6 Ohm |
| Height - Seated (Max) [Max] [z] | 1.299 in |
| Height - Seated (Max) [Max] [z] | 33 mm |
| Inductance | 5.5 mH |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Horizontal, 4 Leads, Radial |
| Shielding | Shielded |
| Size / Dimension [x] | 1.24 in |
| Size / Dimension [x] | 31.5 mm |
| Size / Dimension [y] | 0.728 in |
| Size / Dimension [y] | 18.5 mm |
| Tolerance | 15 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.08 | |
| 50 | $ 4.30 | |||
| 100 | $ 3.82 | |||
Description
General part information
DLH-31 Series
5.5 mH Shielded Inductor 600 mA 3.6Ohm Radial, Horizontal, 4 Leads
