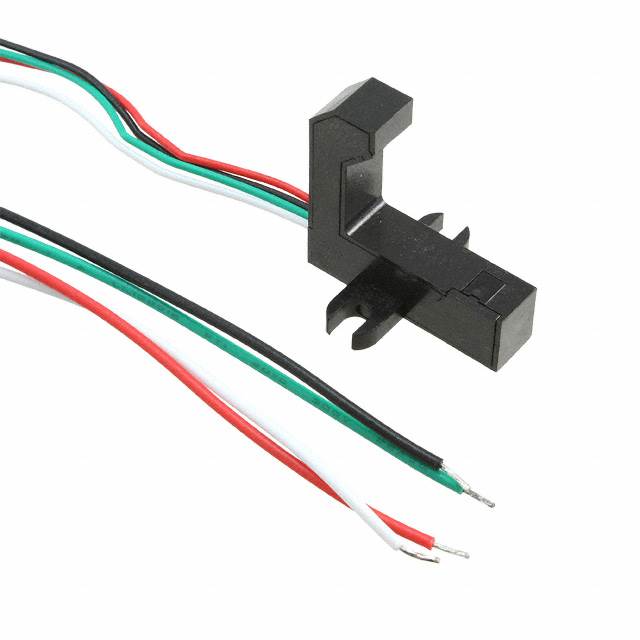

OPB420AZ

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRANS MODUL

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRANS MODUL

Technical Specifications

Parameters and characteristics for this part

Specification	OPB420AZ

Current - Collector (Ic) (Max) [Max]	10 mA
Current - DC Forward (If) (Max) [Max]	20 mA
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Phototransistor
Package / Case	Slot Type, Module, Wire Leads
Sensing Method	Through-Beam
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Sensing Method	Current - DC Forward (If) (Max) [Max]	Output Configuration	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
TT Electronics/Optek Technology OPB420AZ	Through-Beam	20 mA	Phototransistor	10 mA	30 V	Module Slot Type Wire Leads	Chassis Mount	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor Through-Beam Phototransistor Module, Wire Leads, Slot Type
