D2D0112N

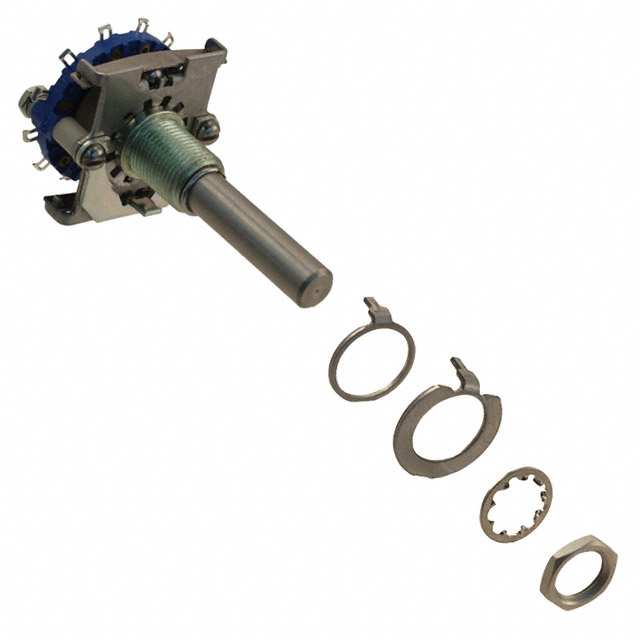

ActiveROTARY SWITCH, 12 POSITION, 1 POLE, 30 °, 250 MA, 115 V, D2 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
D2D0112N
ActiveROTARY SWITCH, 12 POSITION, 1 POLE, 30 °, 250 MA, 115 V, D2 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D2D0112N |
|---|---|
| Actuator Length [x] | 1 in |
| Actuator Type | Round |
| Actuator Type [diameter] | 6.35 mm |
| Angle of Throw | 30 ° |
| Circuit per Deck | SP12T |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 250 mA, 550 mA |
| Index Stops | Adjustable |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 1 |
| Number of Positions [Max] | 12 |
| Number of Positions [Min] | 2 |
| Panel Cutout Dimensions [diameter] | 9.78 mm |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
D2D0112 Series
The D2 series Rotary Switch is used where space is at a premium. This dual-ball side thrust index offers exceptional torque control and is available in 30°, 36°, 45° and 60° angles. Standard designs utilize diallyl phthalate or ceramic insulation, solder lug terminals and 30° adjustable stop indexing. It has lowest practical torque consistent with crisp detenting and smooth, reliable operation.
