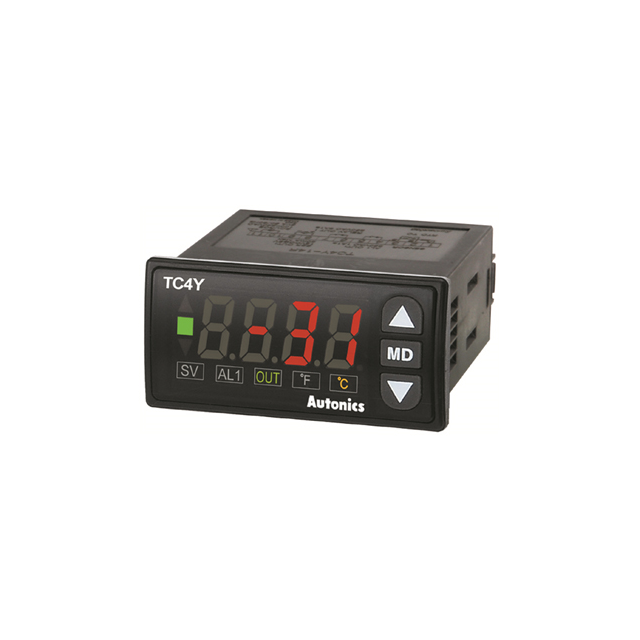

TC4Y-N4R
ActiveAUTONICS
TEMPERATURE CONTROLLER, PID, DIN 72X36, NO ALARM, RELAY, SSRP OUTPUT, 100 TO 240 VAC
Deep-Dive with AI
Search across all available documentation for this part.
TC4Y-N4R
ActiveAUTONICS
TEMPERATURE CONTROLLER, PID, DIN 72X36, NO ALARM, RELAY, SSRP OUTPUT, 100 TO 240 VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TC4Y-N4R |
|---|---|
| Control Method | On/Off, Proportional (PID) |
| Display Characters - Height [z] | 0.59 in |
| Display Characters - Height [z] | 15 mm |
| Display Type | LED - Red Characters |
| Input Range [Max] | 2192 °F |
| Input Range [Min] | -58 °F |
| Number of Characters Per Row | 4 |
| Output Type | Relay, Solid State |
| Panel Cutout Dimensions [x] | 68 mm |
| Panel Cutout Dimensions [y] | 31.5 mm |
| Termination Style | Screw Terminal |
| Type | Temperature Controller (RTD, Type J, K, L) |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TC4Y Series
The TC4Y-N4R from Autonics is a 4-digit single display economical PID Temperature Controller. The TC series is one of the most temperature controlling solution with essential functions and improved performance
